Ultra-Broadband Inverters

HYPERLABS offers ultra-broadband inverters with a typical fixed insertion loss of 2 dB and a very flat frequency response from 150 kHz to 100 GHz.

These devices are used to invert a signal in the time domain, corresponding to a 180° shift in the frequency domain. The inverters are bi-directional with regards to the applied signal.

The cross-connection of the coaxial cable conductor and outer ground along with ferrites and microwave absorber are used to accomplish the inversion.

Typical Applications include test & measurement, high-speed data systems, pulse experiments, and RADAR.

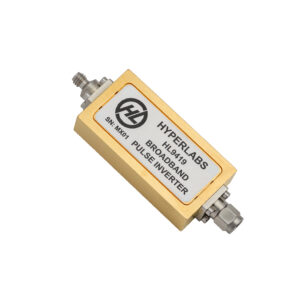

HL9419 Broadband Inverter (150 kHz to 100 GHz)
$2,295.00
Select options
This product has multiple variants. The options may be chosen on the product page

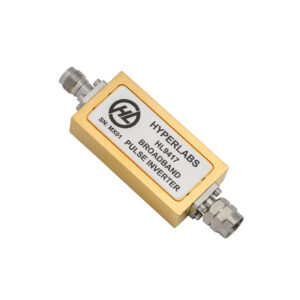

HL9417 Broadband Inverter (150 kHz to 67 GHz)
$1,195.00
Select options
This product has multiple variants. The options may be chosen on the product page

Ultra-Broadband Inverters

HL9419 Broadband Inverter (150 kHz to 100 GHz)

HL9417 Broadband Inverter (150 kHz to 67 GHz)

Available Models
