HL2200USB High-speed Differential USB-controlled TDR

THIS PRODUCT HAS BEEN DISCONTINUED. EXISTING CUSTOMERS SHOULD CONTACT HYPERLABS FOR SUPPORT.

The HL2200USB is a high-speed differential TDR designed for measuring electrical impedance in circuit board test coupons, connectors, and cables shorter than 1 meter.

It generates a stimulus pulse with a 35 ps risetime and 25 ns duration, making it fast enough to test connectors as well as cables.

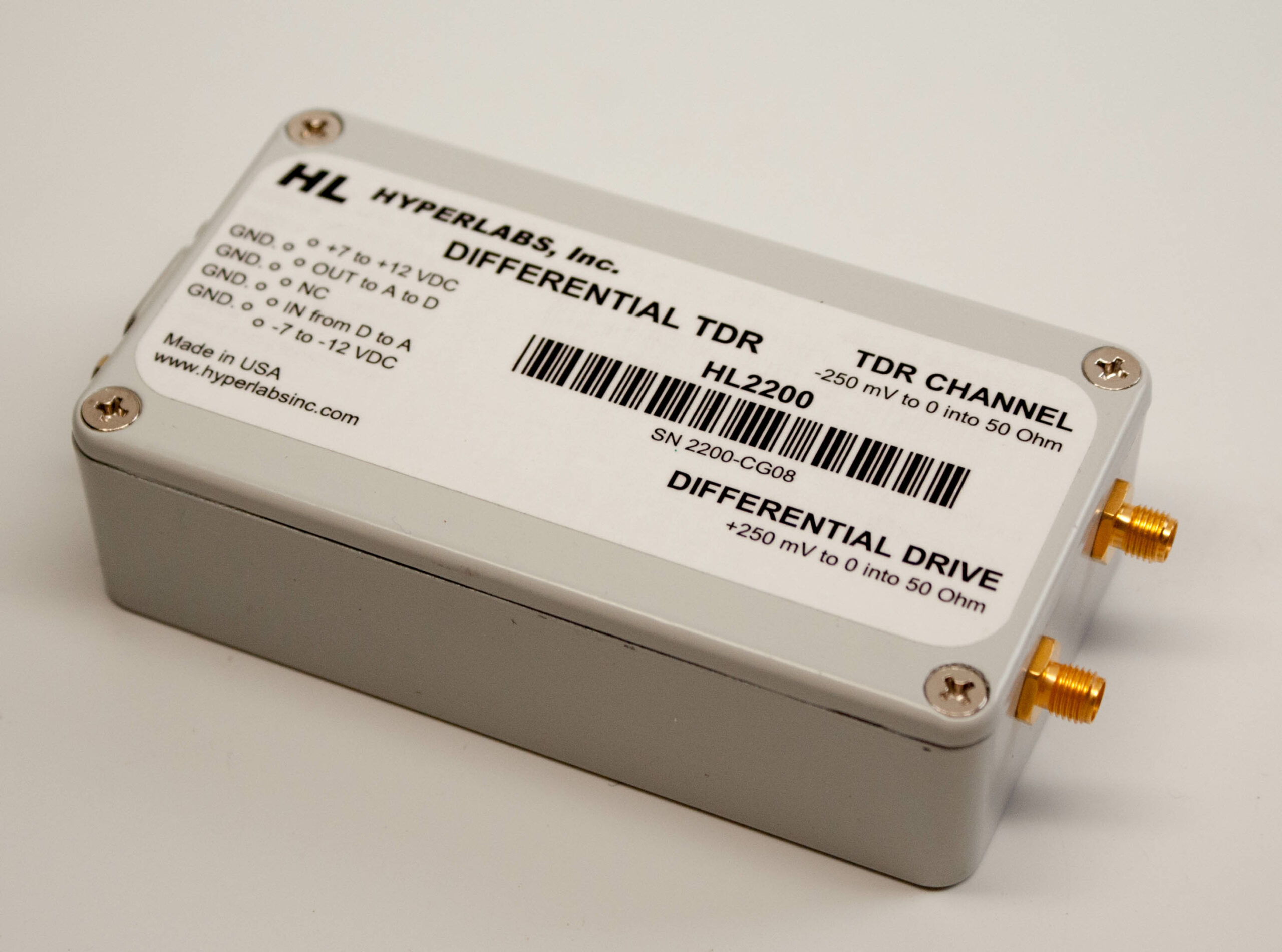

Lightweight and portable, this instrument is powered and controlled via one USB port and has two SMA output connectors. The included software allows operators to read and process test results on compatible Windows PCs*.

NOTE: The new HL2202 is a direct replacement for this product, and will be suitable for all of the same applications. The HL2202 is compatible with 64-bit versions of Windows, while the HL2200USB only works in 32-bit versions of Windows.
