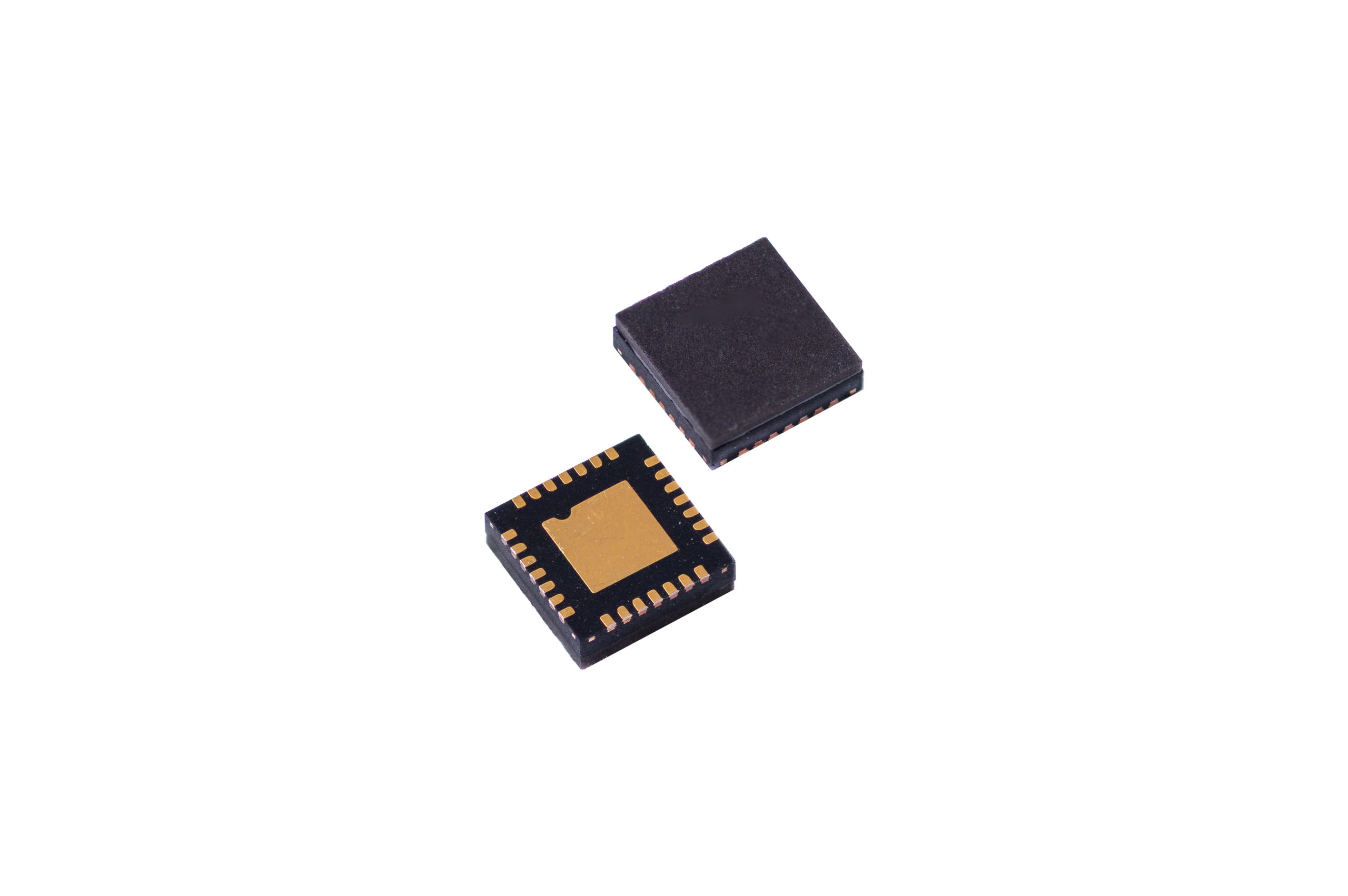

HL7061 in 4x4 mm QFN package
HL7061_block

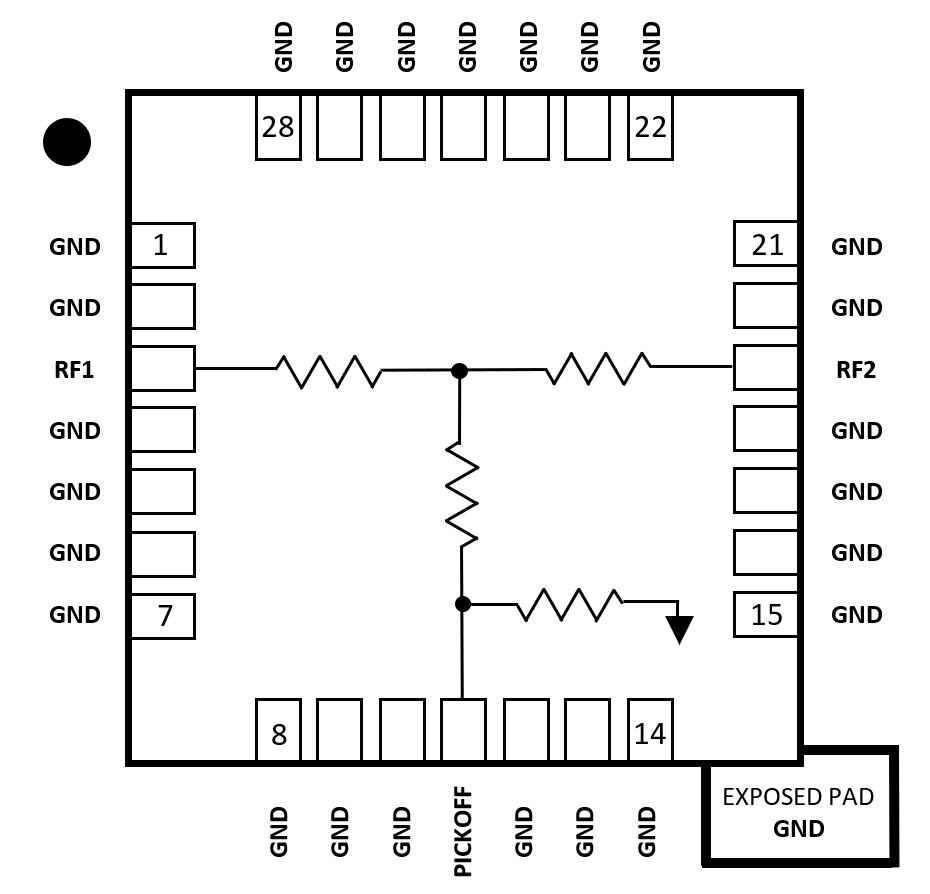

HL7061 block diagram and pinout
HL7061_Sparam

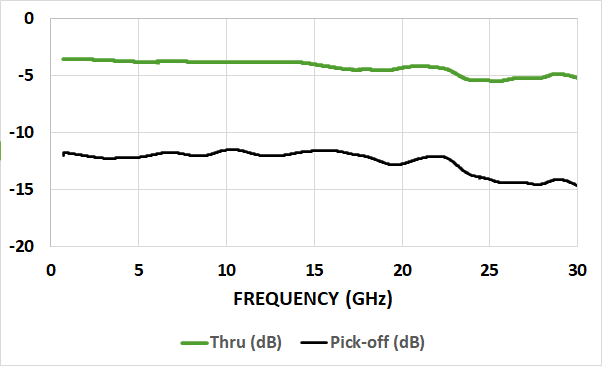

Typical HL7061 insertion loss on the thru and pick-off lines
HL7061 Broadband SMD Z-matched Pick-off Tee (DC to 30 GHz)
$219.00 – $695.00
Please contact us for pricing on quantities below 250 pcs.
Datasheet | S-parameters
The HL7061 is a Z-matched pick-off tee in a 4×4 mm QFN package that provides outstanding flatness on both the thru and pick-off lines from DC to 30+ GHz.
This ROHS-compliant product is suitable for use in 100 Gbps Ethernet, 100 Gbps Long Haul, and 40 Gbps (D)QPSK communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.
Volume discounts available for quantities above 10 pcs. Please contact us for volume pricing information.
Key Specifications (typical)
| Bandwidth | DC to 30 GHz |
|---|---|
| Insertion Loss | 4 ± 1 dB, thru line 13 ± 2 dB, pick-off line |
| Return Loss | >10 dB, all lines |
| Interface | Solderable pads, Gold ENIG |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
