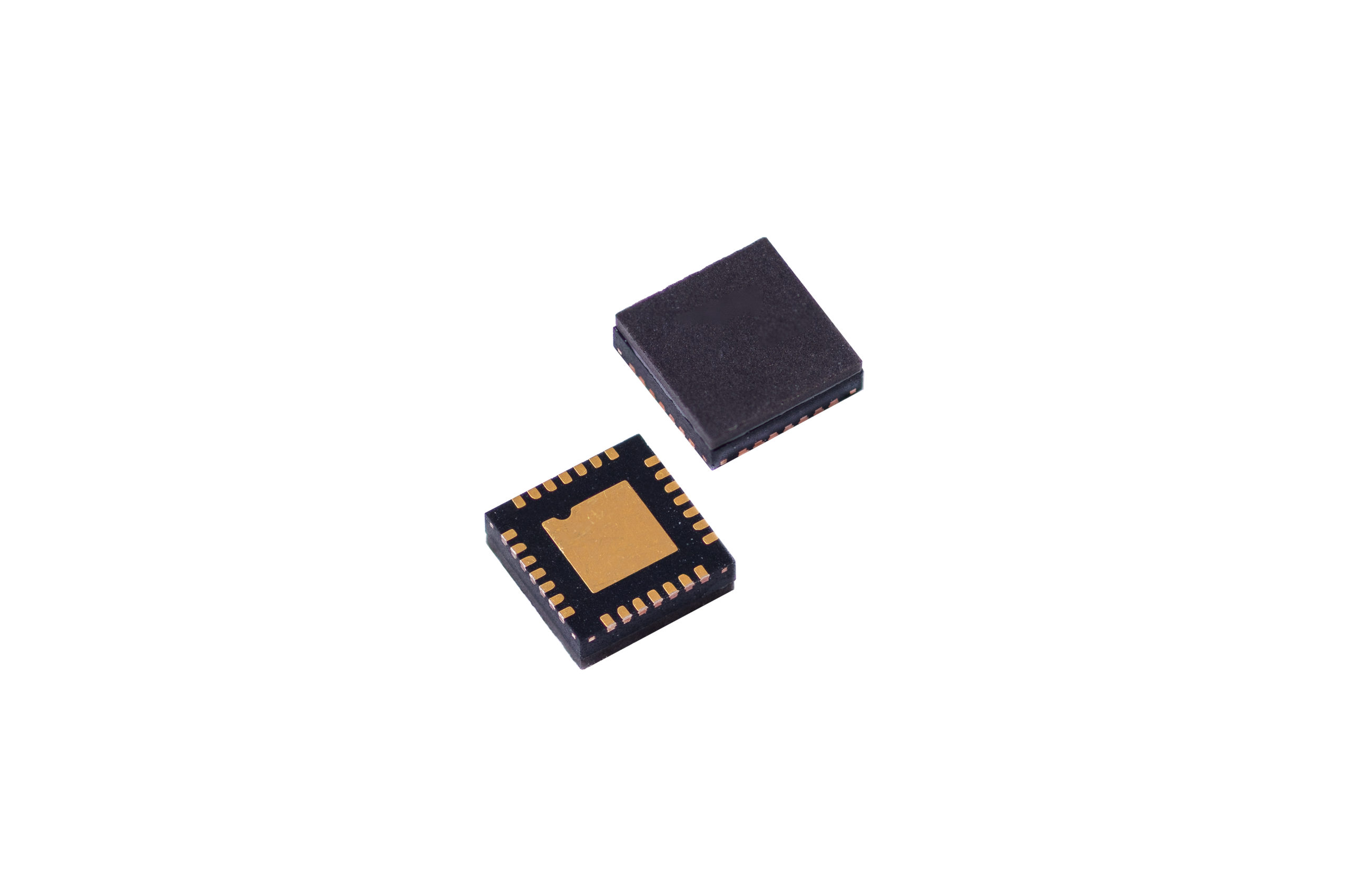

HL7071 in 4x4 mm QFN package
HL7071_block

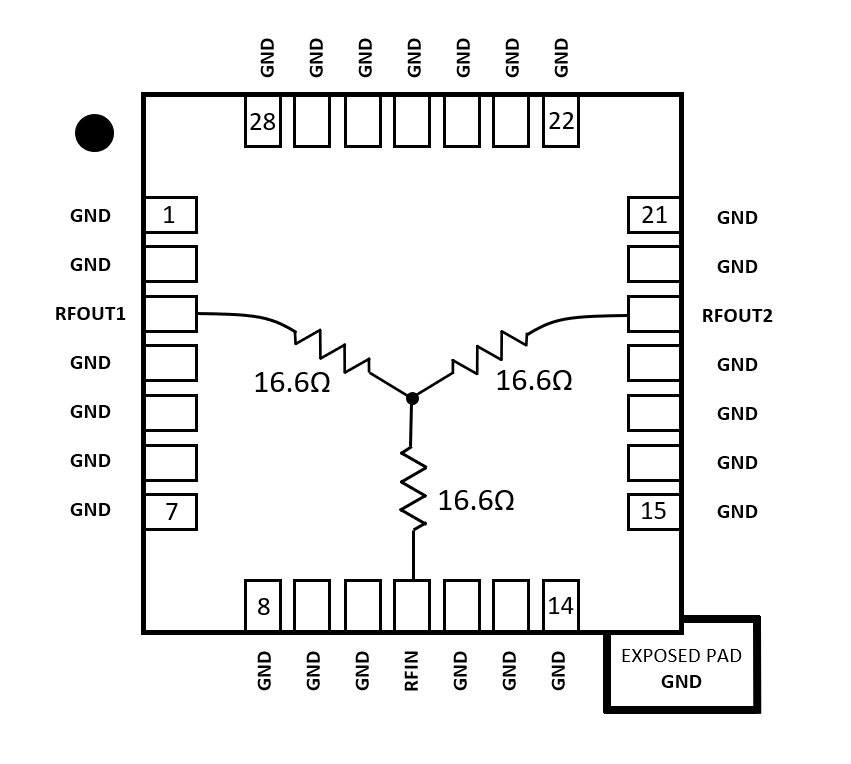

HL7071 block diagram and pinout
HL7071_Sparam

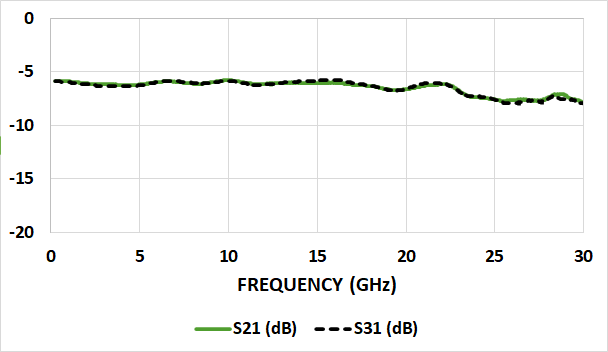

Typical HL7071 insertion loss
HL7071 Broadband SMD Resistive Power Divider (DC to 30 GHz)
$199.00 – $695.00
Please contact us for pricing on quantities below 250 pcs.
Datasheet | S-parameters
The HL7071 is a 6 dB power divider in a 4×4 mm QFN package that provides outstanding amplitude and phase symmetrical power division from DC to 30+ GHz.
This ROHS-compliant product is designed using a three-resistor network resulting in outputs that are nominally attenuated to 6 dB, and all ports are impedance-matched to 50 Ohms when the ports are terminated.
They are suitable for use in 100 Gbps Ethernet,100 Gbps Long Haul, and 40 Gbps (D)QPSK communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.
Volume discounts available for quantities above 10 pcs. Please contact us for volume pricing information.
Key Specifications (typical)
| Bandwidth | DC to 30 GHz |
|---|---|
| Amplitude Match | ± 0.3 dB |
| Phase Match | ± 4 degrees, f = 20 GHz |
| Insertion Loss (AC) | 6 dB |
| Return Loss | >15 dB, 15 dB, f ≤ 20 GHz >10 dB, f > 20 GHz |
| Interface | Solderable pads, Gold ENIG |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
