HL8200 ISA-controlled TDR

THIS PRODUCT HAS BEEN DISCONTINUED. EXISTING CUSTOMERS SHOULD CONTACT HYPERLABS FOR SUPPORT.

The HL8200 is a time domain reflectometer (TDR) designed for measuring electrical impedance in cables and other electrical systems.

It generates a stimulus pulse, with a 200 ps risetime and 14 µs duration, and takes samples from the incident pulse and the signal reflected from the device under test.

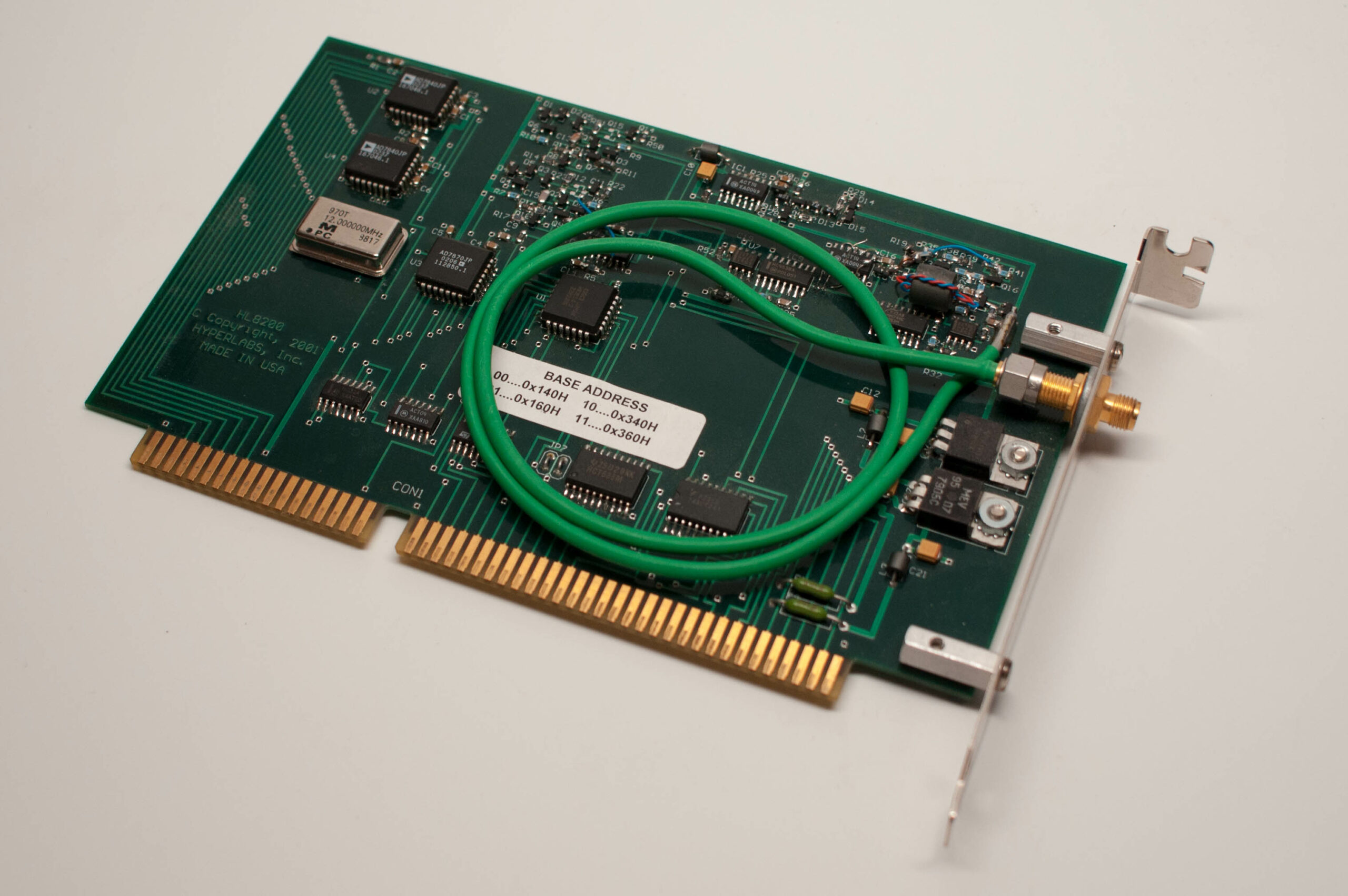

The HL8200 installs in a standard ISA slot and has one SMA output connector. The included software allows operators to read and process test results on Windows PCs.
