HL8342_web

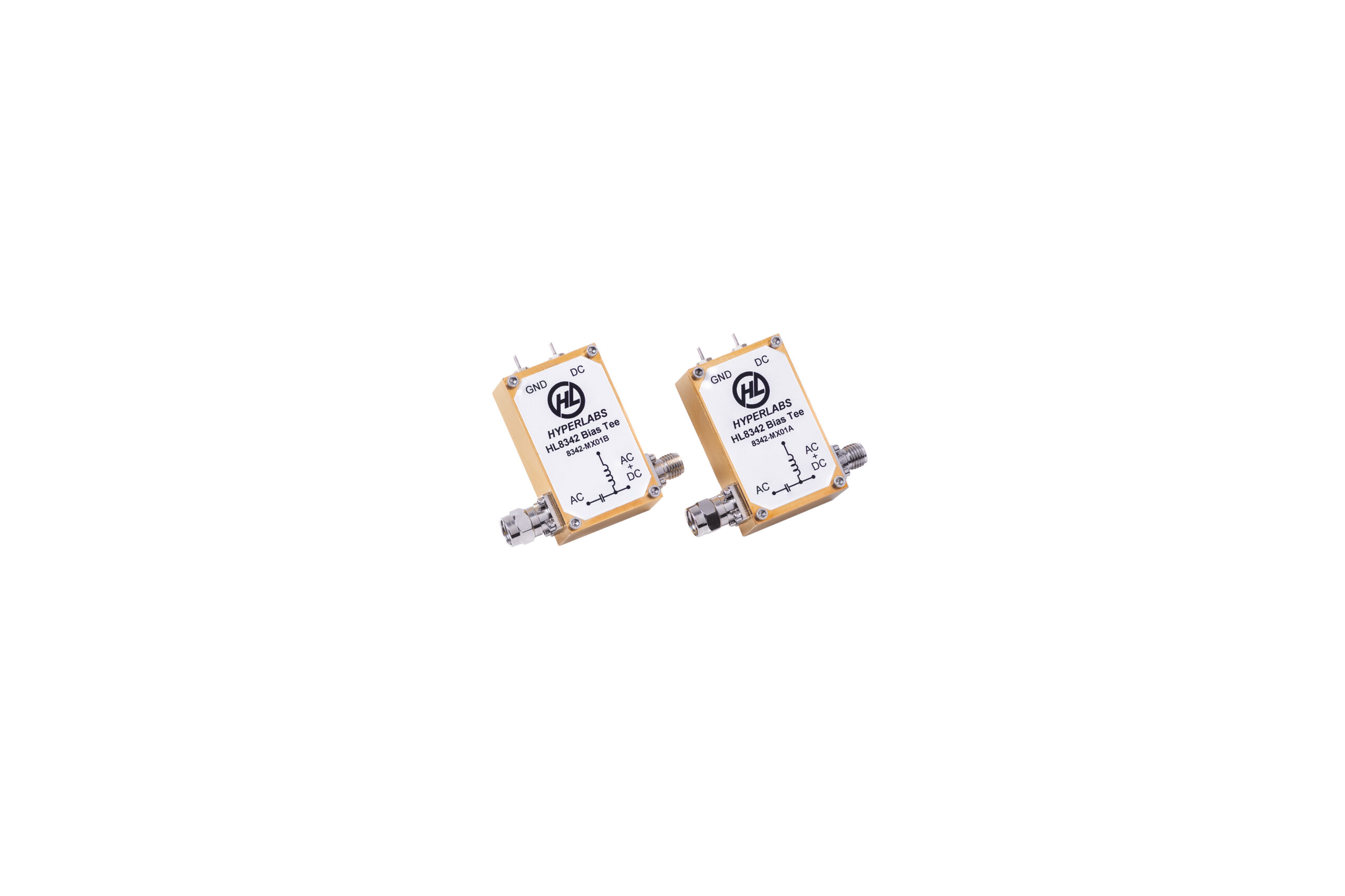

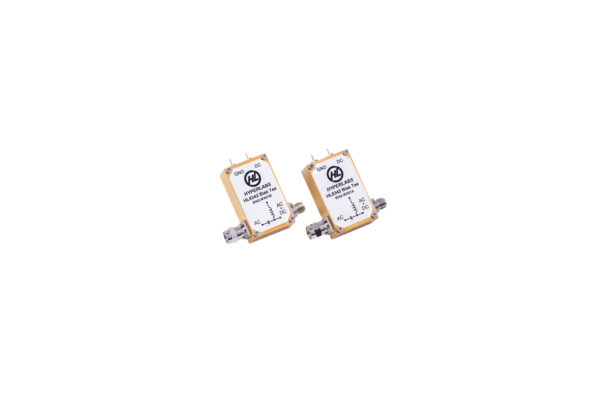

HL8342 Broadband Bias Tee (opt. -M-PJ shown)
HL8342_block

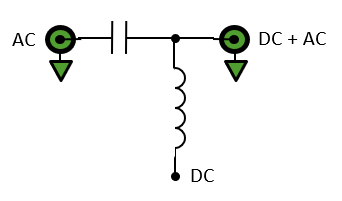

HL8342 block diagram
HL8342_IL_RL

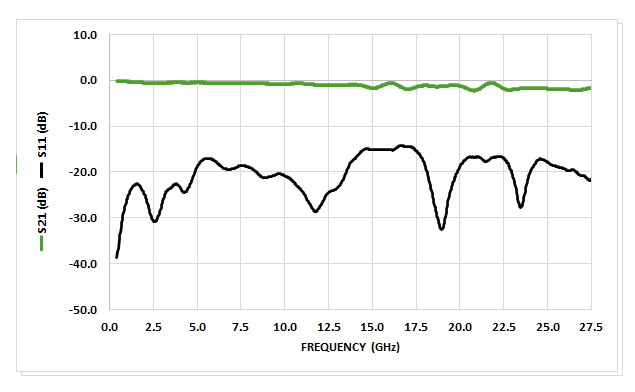

Typical HL8342 insertion and return loss
HL8342 Broadband Bias Tee (5 kHz to 28 GHz, 500 mA)
$895.00 – $1,795.00
Datasheet PDF | S-parameters
The HL8342 is an ultra-broadband bias tee with a typical insertion loss of 0.5 dB from 5 kHz to 28 GHz and a max current of 500 mA.
These devices block any existing DC signal and allows for the insertion of a DC bias current into a circuit with minimal perturbation of the impedance of a 50 ohm transmission line.
These devices can be used for biasing amplifiers, lasers, optical modulators, and other devices.
Applications include optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
This part is available as matched pairs or individual units with a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 5 kHz to 28 GHz |
|---|---|
| Amplitude Match | ± 0.1 dB (opt. -M), f ≤ 28 GHz |
| Phase Match | ± 4 degrees, f = 20 GHz (opt. -M) |
| Insertion Loss | < 0.5 dB, nominal, f ≤ 28 GHz |
| Return Loss | > 15 dB, f ≤ 25 GHz |
| Max Current | 500 mA |
| Connectors | SMA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
