HL8435

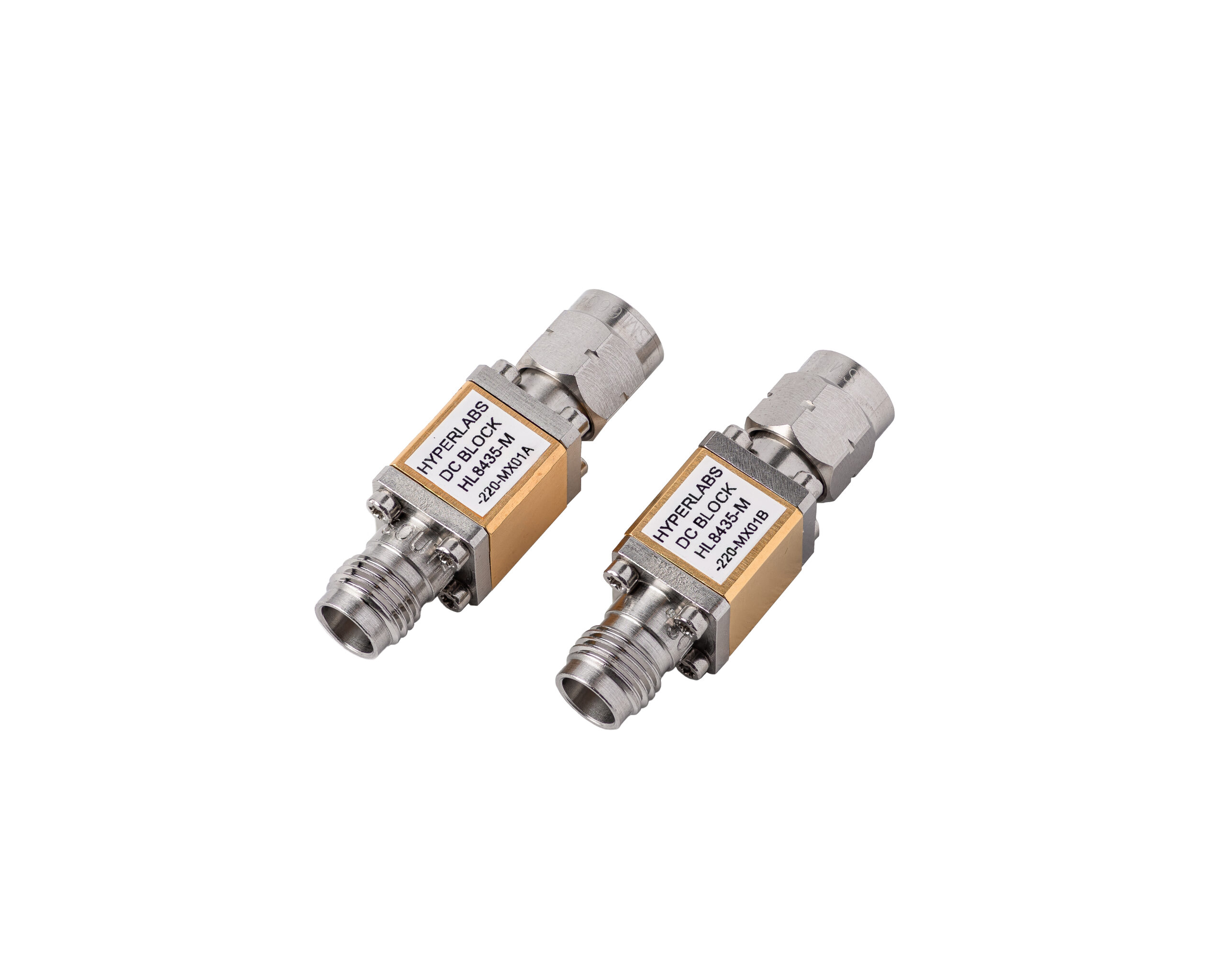

HL8435 DC Block (20 kHz to 50 GHz), opt. -M-JP shown
HL843x_block
HL843x block diagram
HL8437_Sparams
Typical HL843x Series insertion and return loss (model HL8437 shown)
HL8435 Broadband DC Block (7 kHz to 50 GHz, 220 nF)
$695.00 – $1,395.00
Datasheet PDF | S-parameters
The HL8435 is an ultra-broadband DC Block with a typical insertion loss of < 1.5 dB throughout the specified bandwidth range.
The DC block will remove DC bias from the input signal to prevent damage to DC-sensitive devices or equipment.
These devices are suitable for use in 112 Gbps PAM4 communications systems, optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
They can also be used to improve RF power measurements when a power meter with DC sensitivities is used.
This part is available as matched pairs or individual units and a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 7 kHz to 50 GHz |
|---|---|
| Capacitance | 220 nF |
| Amplitude Match | ± 0.1 dB, f ≤ 50 GHz (opt. -M) |
| Phase Match | ± 4 degrees, f = 40 GHz (opt. -M) |
| Insertion Loss | < 1.5 dB, nominal, f ≤ 50 GHz |
| Connectors | 2.4 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
