HL9200 Triggerable Impulse Generator

THIS PRODUCT HAS BEEN DISCONTINUED. EXISTING CUSTOMERS SHOULD CONTACT HYPERLABS FOR SUPPORT.

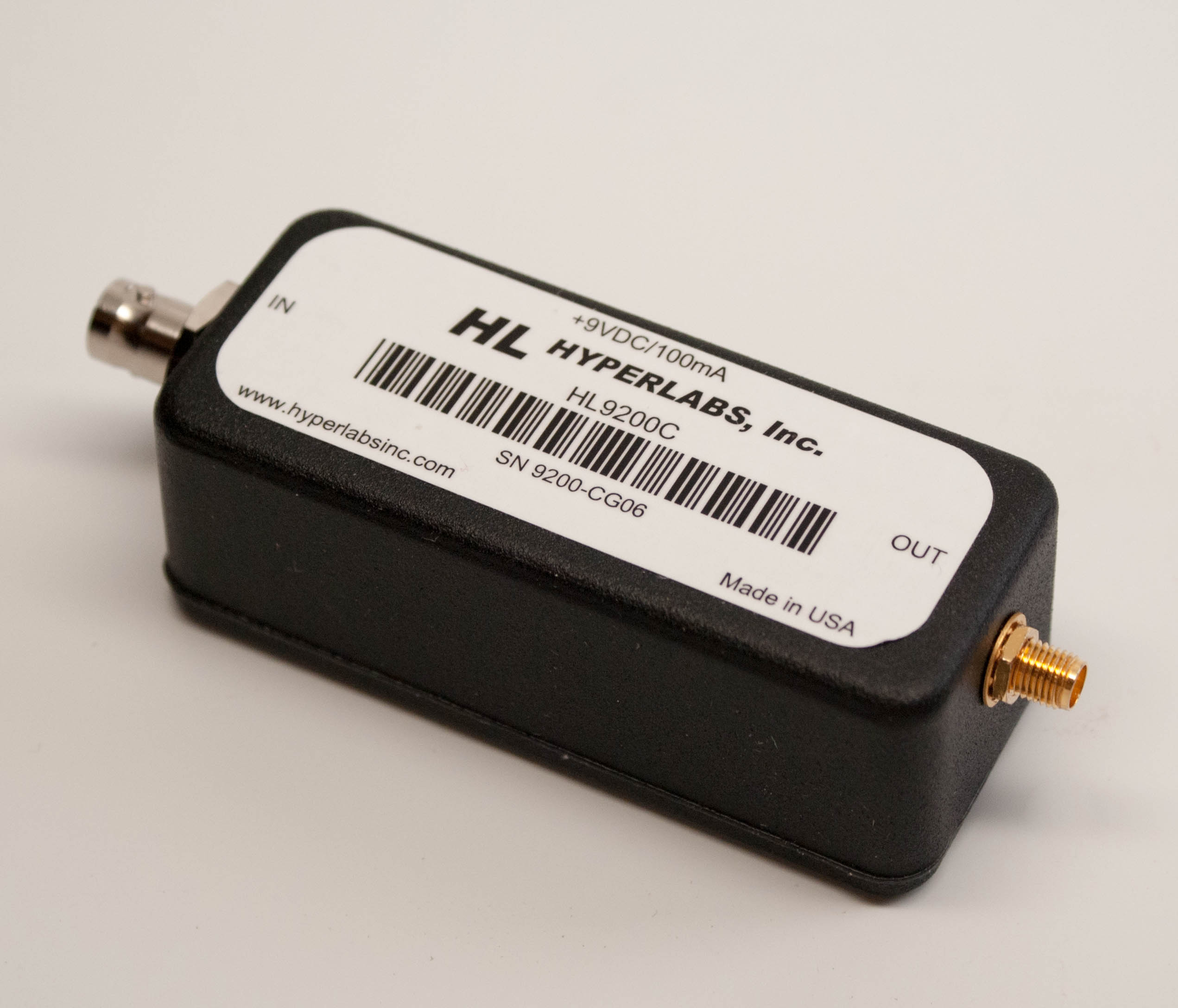

The HL9200 is a triggerable single-ended impulse generator with an SMA output connector. For every positive going transition of the input signal, it generates a short (50 ps) positive going output pulse.

Each pulse has a wide spectrum in the frequency domain extending into the Ultra Wide Band (UWB) communication region (1-10 GHz).

NOTE: The new HL9201 is a direct replacement for this product, and will be suitable for all of the same applications.
