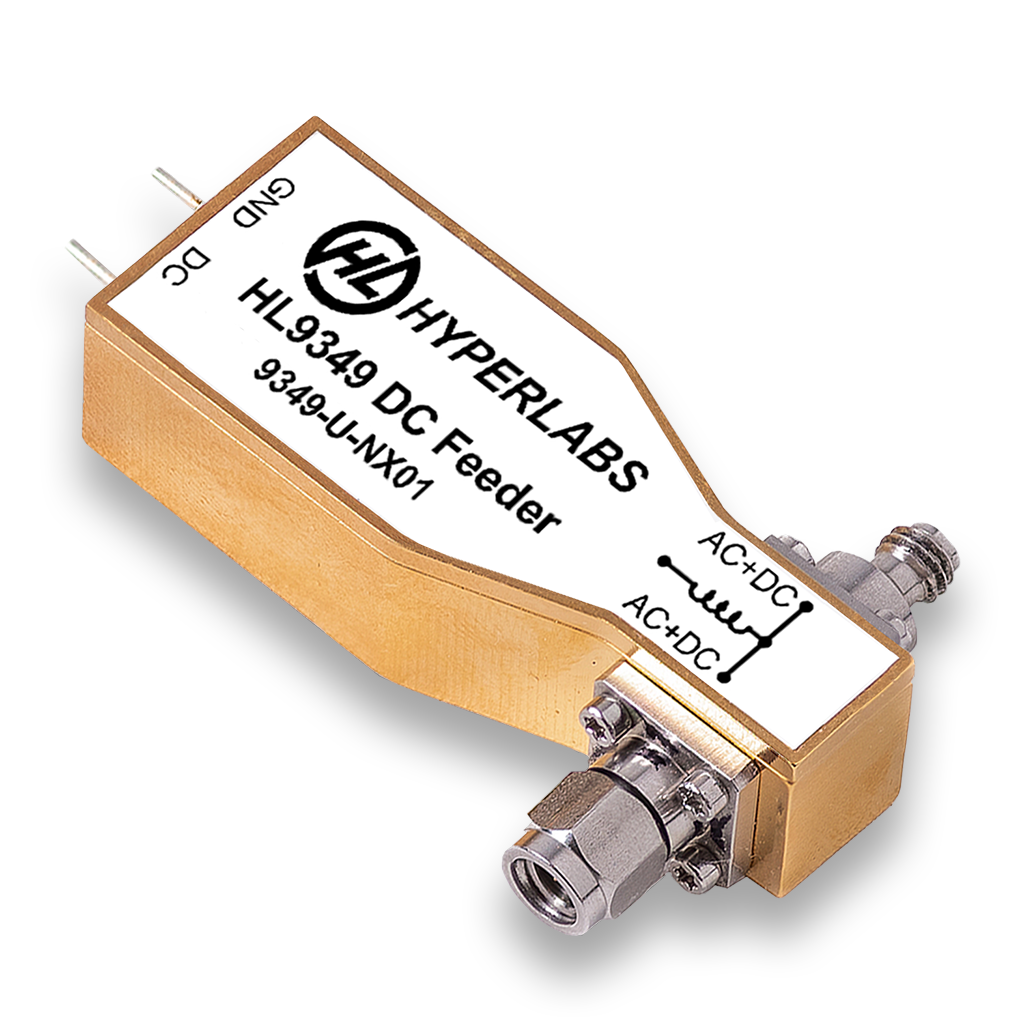

HL9349 DC Feeder (opt. -U-JP shown)
HL9348 Broadband DC Feeder (13 kHz to 90 GHz)
$3,795.00 – $8,090.00
Datasheet PDF | S-parameters
The HL9348 is an ultra-broadband DC feeder with a typical insertion loss of 2.5 dB from 13 kHz to 90 GHz.
A DC feeder functions similarly to a bias tee, but without a DC blocking capacitor on the RF input.
The HL9348 allows for the insertion of a DC bias current or voltage onto the RF circuit path with minimal perturbation of the impedance of a 50 ohm transmission line.
These devices can be used for biasing amplifiers, lasers, optical modulators, and other devices.
Applications include 224 Gbps PAM4 communications systems, optical communication systems, highspeed data systems, level shifting, and cascading.
This part is available as matched pairs or individual units with a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 13 kHz to 90 GHz |
|---|---|
| Amplitude Match | ± 0.1 dB, f ≤ 90 GHz (opt. -M) |
| Phase Match | ± 4 degrees, f = 40 GHz (opt. -M) |
| Insertion Loss | < 2.5 dB, typical, f ≤ 90 GHz |
| Return Loss | > 15 dB, f ≤ 55 GHz > 10 dB, 55 GHz < f ≤ 90 GHz |
| Max Current | 175 mA |
| Connectors | 1.0 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
