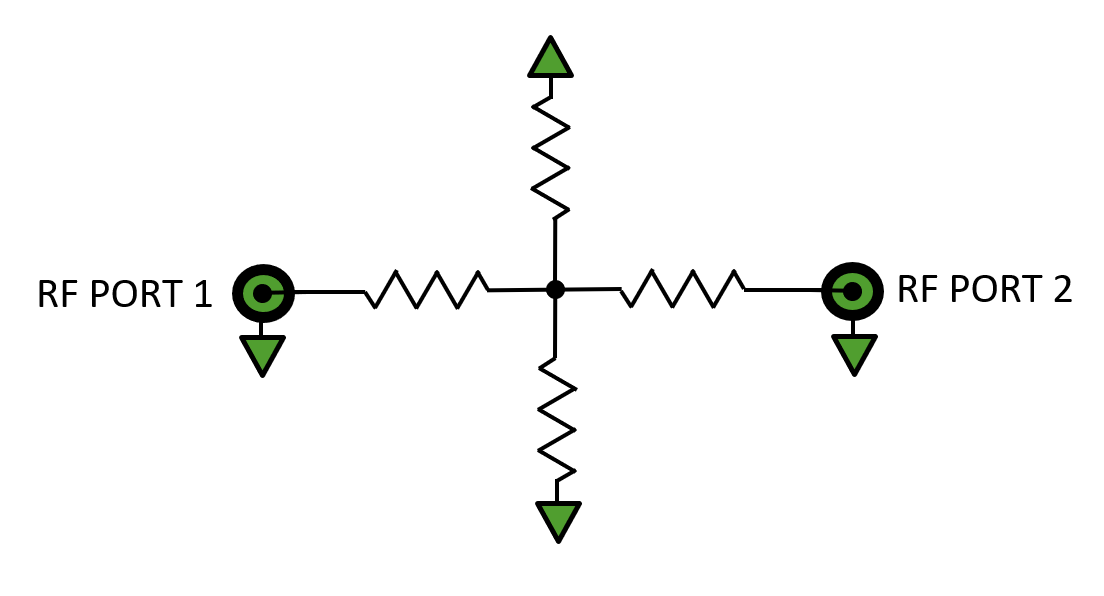

HL942x block diagram
HL9429_IL small

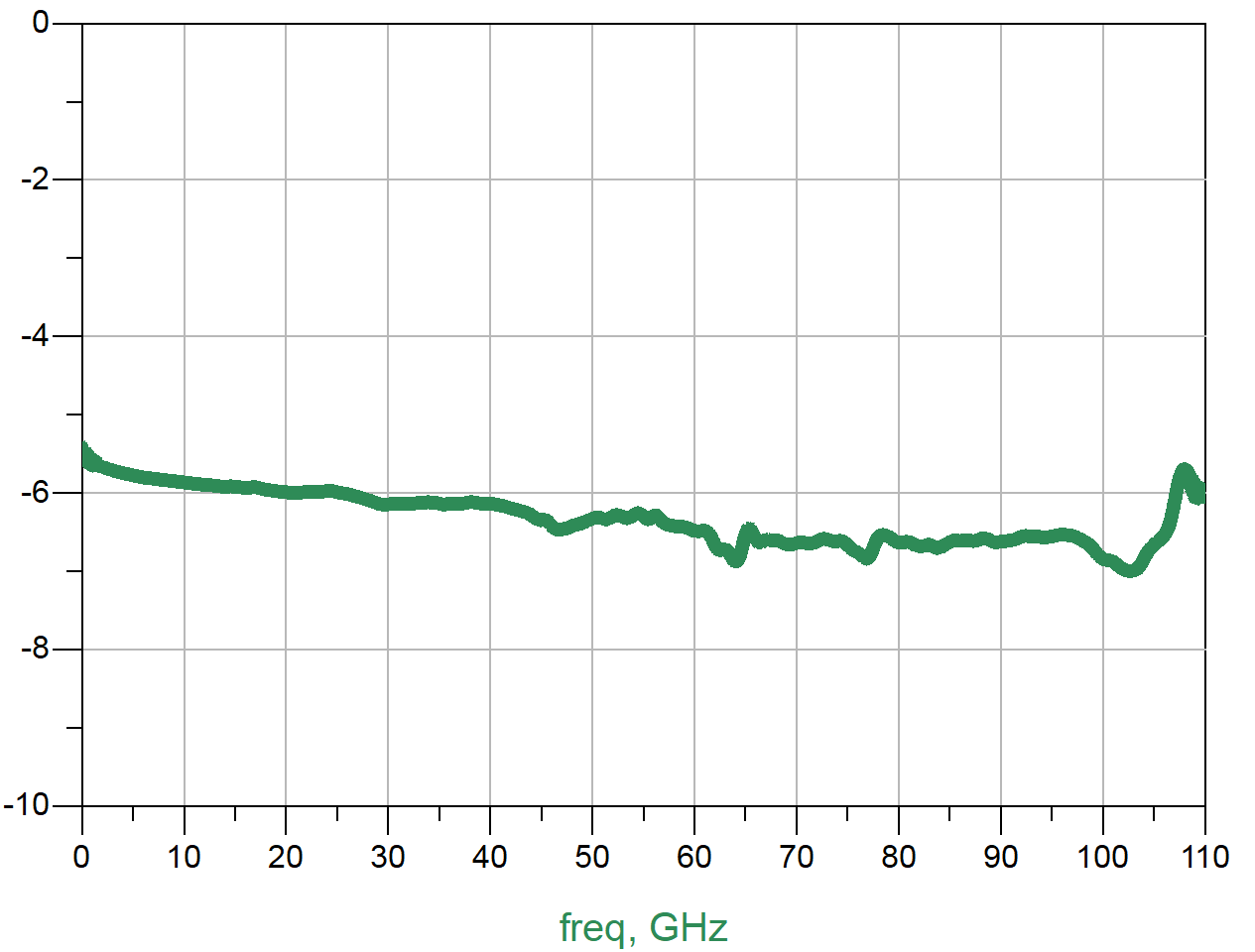

HL9429 Insertion Loss

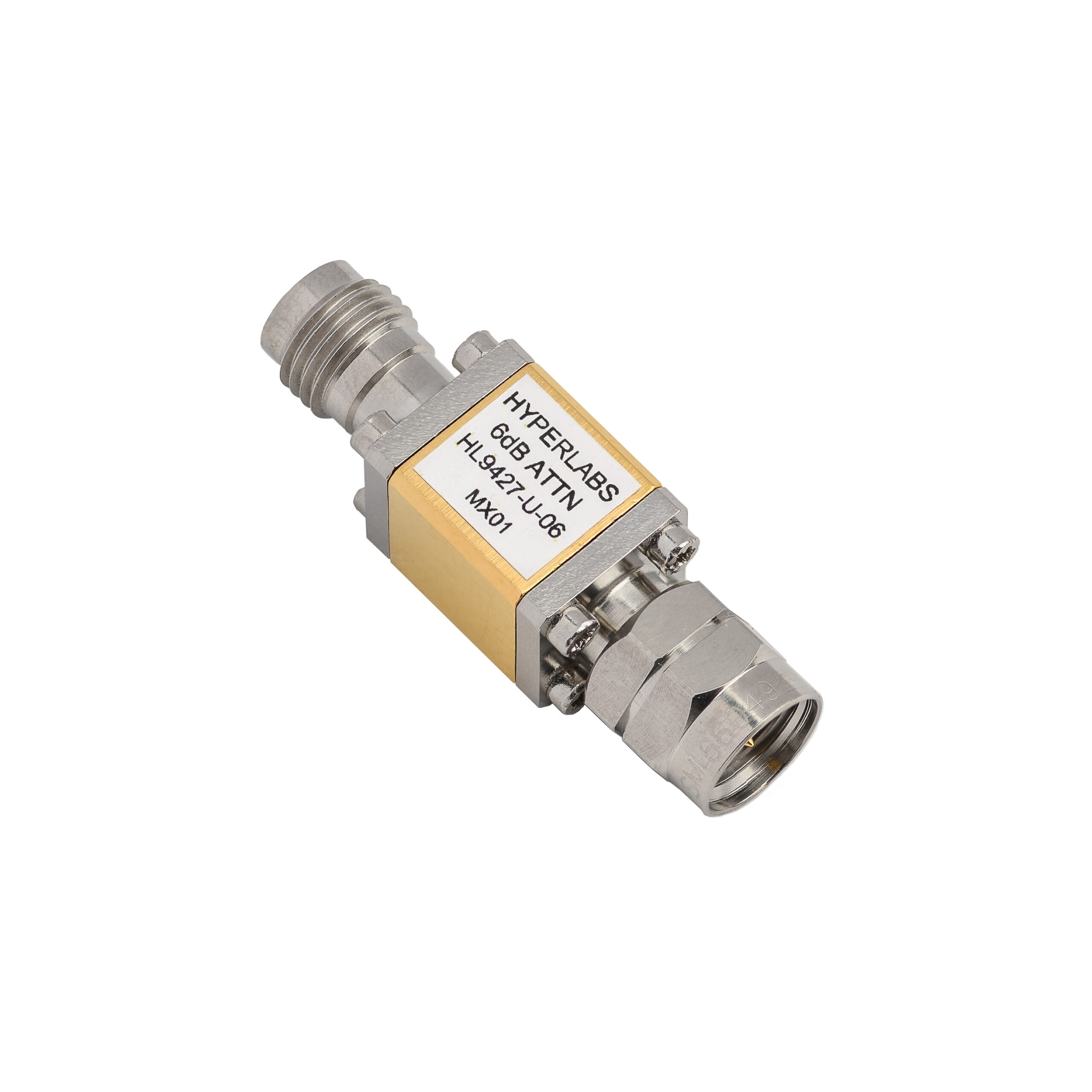

HL9427 Broadband Attenuator (DC to 67 GHz)
$795.00 – $1,595.00
Datasheet | S-parameters
The HL9427 is an ultra-broadband attenuator with a typical fixed insertion loss of 6 dB with a very flat frequency response from DC to 67 GHz.
These devices are typically used to reduce RF input power to protect sensitive front-end instrumentation or any other application that requires a signal reduction.
Typical Applications include optical communications, test & measurement, high-speed data systems, pulse experiments, and 112 Gbps PAM4 communications systems.
Key Specifications (typical)
| Bandwidth | DC to 67 GHz |
|---|---|
| Amplitude Match (opt. -M) | ± 0.2 dB, DC < f ≤ 60GHz ± 0.5 dB, 60 < f ≤ 67 GHz |
| Phase Match (opt. -M) | ± 5°, DC < f ≤ 67 GHz |
| Insertion Loss (AC) | 3 ± 0.6 dB, DC < f ≤ 67 GHz (opt. -03) 6 ± 0.6 dB, DC < f ≤ 67 GHz (opt. -06) 10 ± 0.6 dB, DC < f ≤ 67 GHz (opt. -10) |
| Connectors | 1.85 mm; 1x jack, 1x plug |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
