Technical Specifications
Datasheet PDF
| Insertion Loss | -1.24 dB at 10 GHz |
|---|---|
| Return Loss | -11 dB at 10 GHz |
| Rise Time | < 17.5 ps |
| Bandwidth | 16 kHz to 20 GHz |
| ROHS compliance | Yes, assembled with lead-free solder |
| Warranty | 1 year, repair or replacement |
HL9430

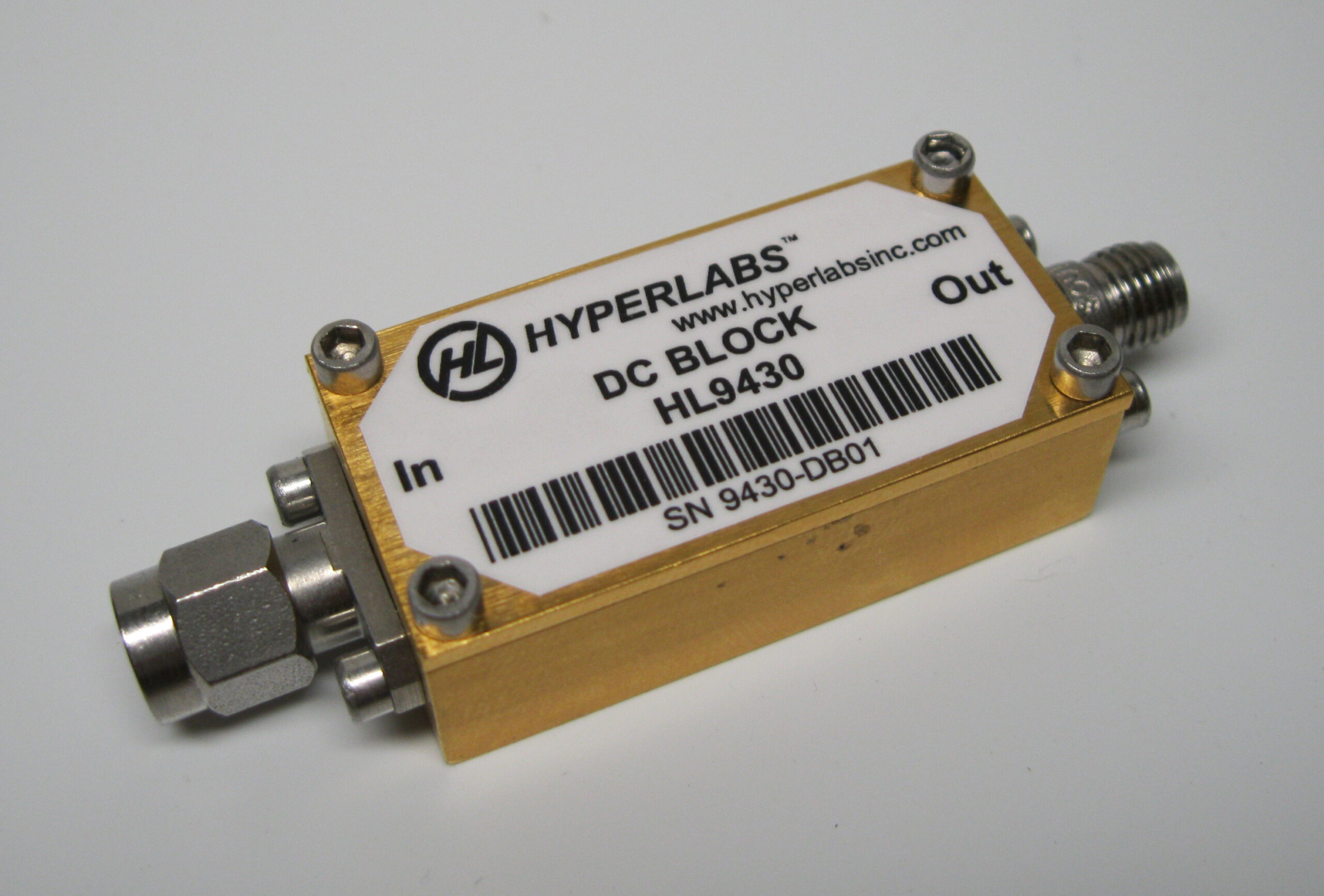

HL9430 Broadband DC Block Capacitor (Individual Unmatched)
DISCONTINUED
EFFECTIVE MAY 21, 2020, THIS PRODUCT IS NO LONGER AVAILABLE FOR PURCHASE. EXISTING CUSTOMERS SHOULD CONTACT HYPERLABS FOR SUPPORT.
The HL9430 DC Block Capacitor prevents perturbation of a circuit’s DC biasing by low DC input resistance in a resonance-free 50 ohm controlled impedance environment.
Data and Documentation
Ordering and Shipping
This product is built to order. Please contact us for lead time information.
