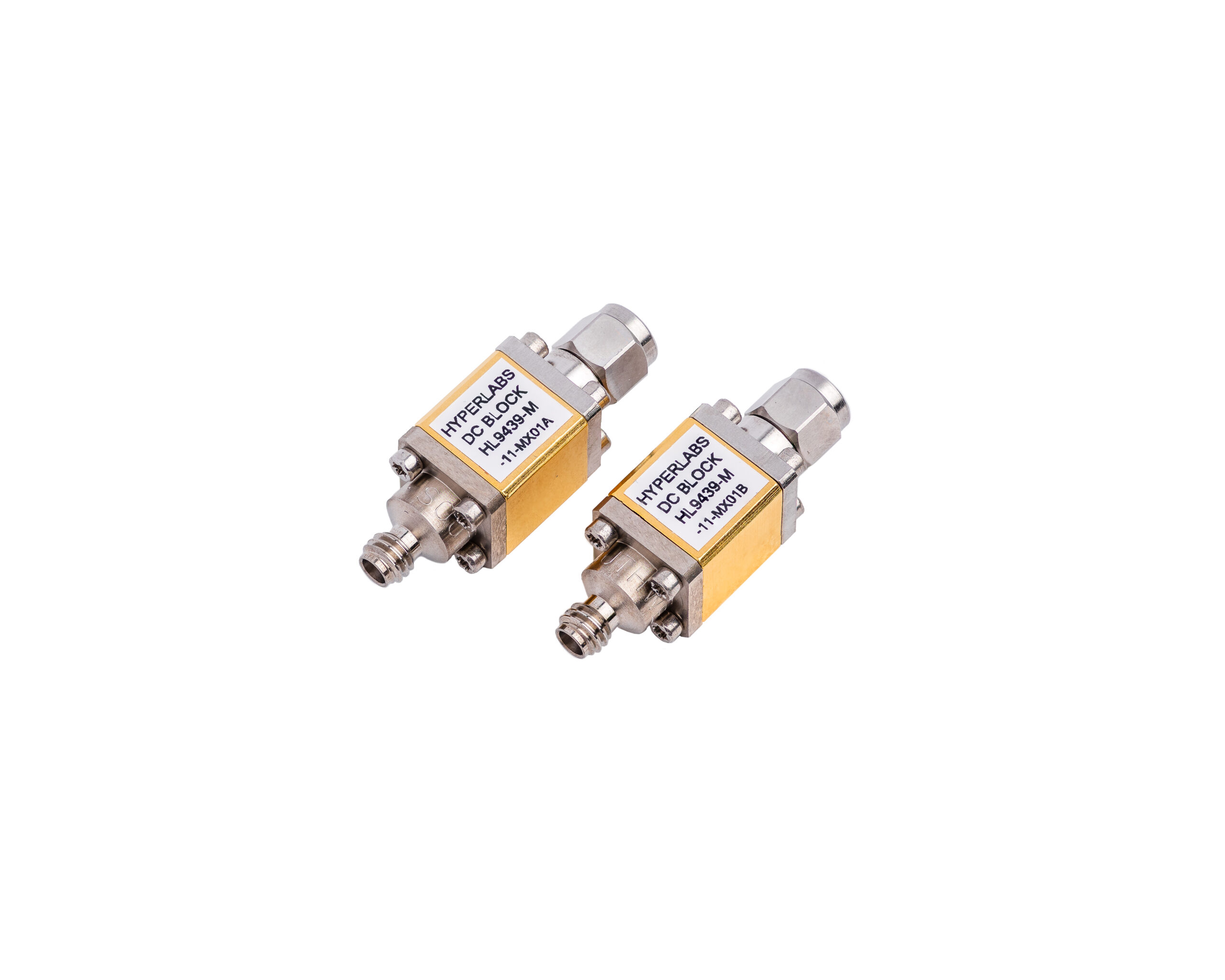

HL9439 Broadband DC Block, 110 GHz), opt. -M-JP shown
HL9439_block
HL9438/9 Series block diagram
HL9439_Sparam

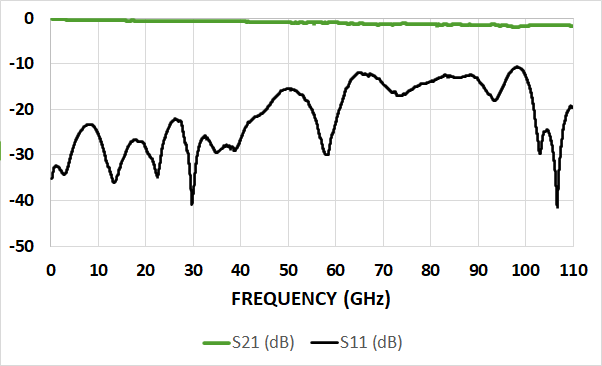

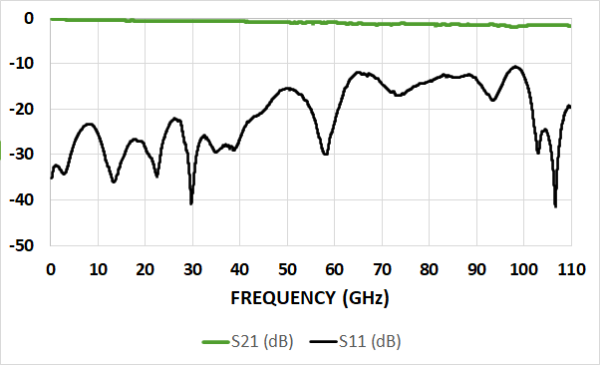

Typical HL9438/9 Series insertion and return loss (model HL9439 shown)
HL9439 Broadband DC Block (160 kHz to 110 GHz)
$3,295.00 – $7,090.00
Datasheet PDF | S-parameters
The HL9439 is an ultra-broadband DC Block with a typical insertion loss of < 2 dB to 110 GHz.
The DC block will remove DC bias from the input signal to prevent damage to DC-sensitive devices or equipment.
These devices are suitable for use in 224 Gbps PAM4 communications systems, optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
They can also be used to improve RF power measurements when a power meter with DC sensitivities is used.
This part is available as matched pairs or individual units with breakdown voltage of 11 V or 30 V and a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 160 kHz to 110 GHz (opt. -11) 280 kHz to 110 GHz (opt. -30) |
|---|---|
| Amplitude Match | ± 0.1 dB, f ≤ 110 GHz (opt. -M) |
| Phase Match | ± 4 degrees, f = 40 GHz (opt. -M) |
| Insertion Loss | < 2 dB, nominal, f ≤ 110 GHz |
| Connectors | 1.0 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
