Technical Specifications
Datasheet PDF
| Insertion Loss | < 1 db to 5 GHz; -2 dB at 10 GHz |
|---|---|
| Return Loss | 25 dB at 10 GHz |
| Rise Time | 20 ps |
| Bandwidth | 16 kHz to 20 GHz |
| ROHS compliance | Yes, assembled with lead-free solder |
| Warranty | 1 year, repair or replacement |
The Hyperlabs online store is closed for the holidays, and we will return on January 2, 2025.

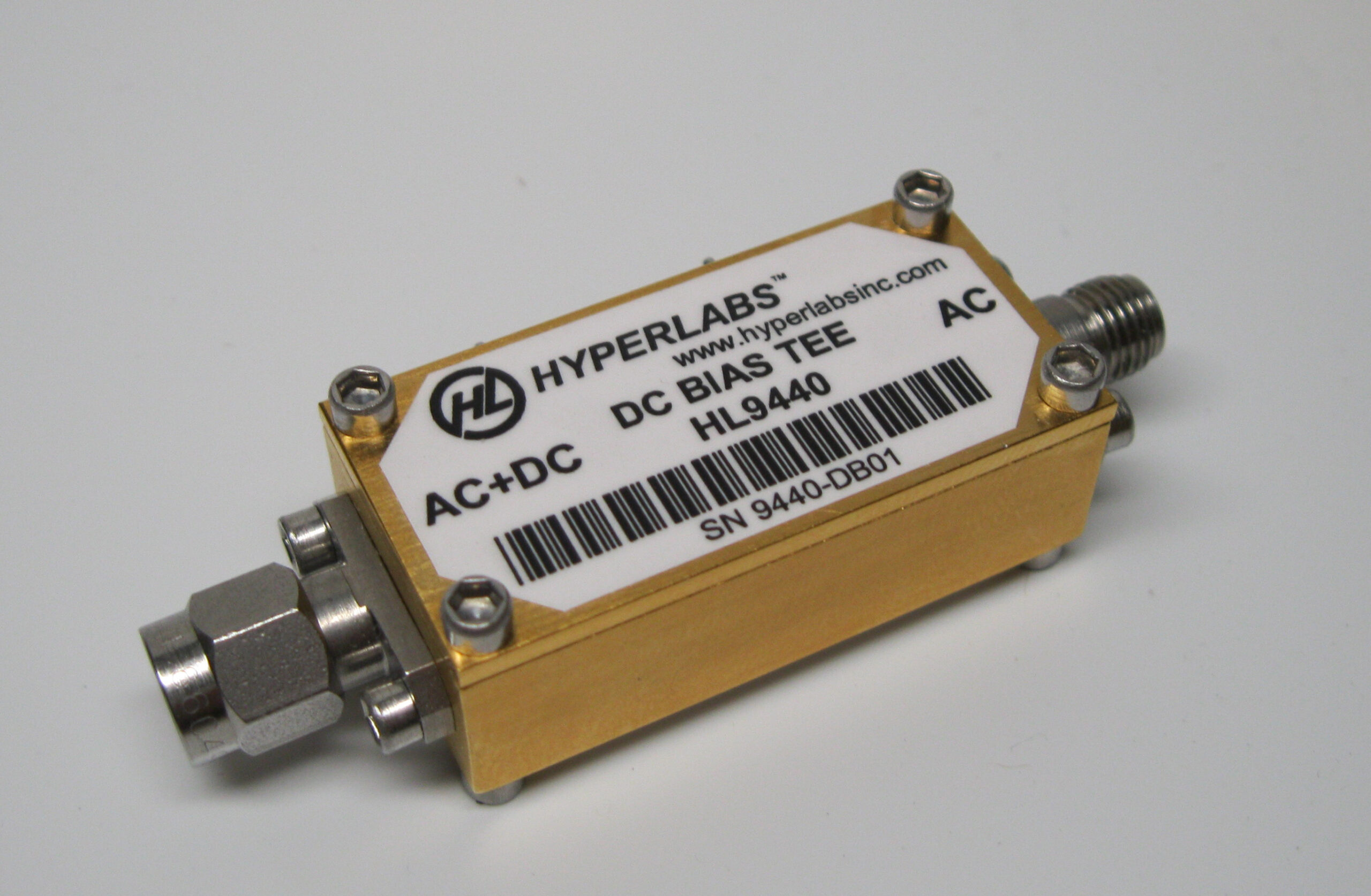

HL9440
HL9440M Broadband DC Bias Tee (Matched Pair)
DISCONTINUED
EFFECTIVE MAY 21, 2020, THIS PRODUCT IS NO LONGER AVAILABLE FOR PURCHASE. EXISTING CUSTOMERS SHOULD CONTACT HYPERLABS FOR SUPPORT.
The HL9440M is a broadband DC bias tee pair that allows for the insertion of a DC bias current into a circuit with minimal perturbation of the impedance of a 50 ohm transmission line.
Data and Documentation
Ordering and Shipping
This product is built to order. Please contact us for lead time information.
Questions About this Product
Not sure this product fits your needs? Do you need something a little different? Please contact us and we’ll help you figure it out.
