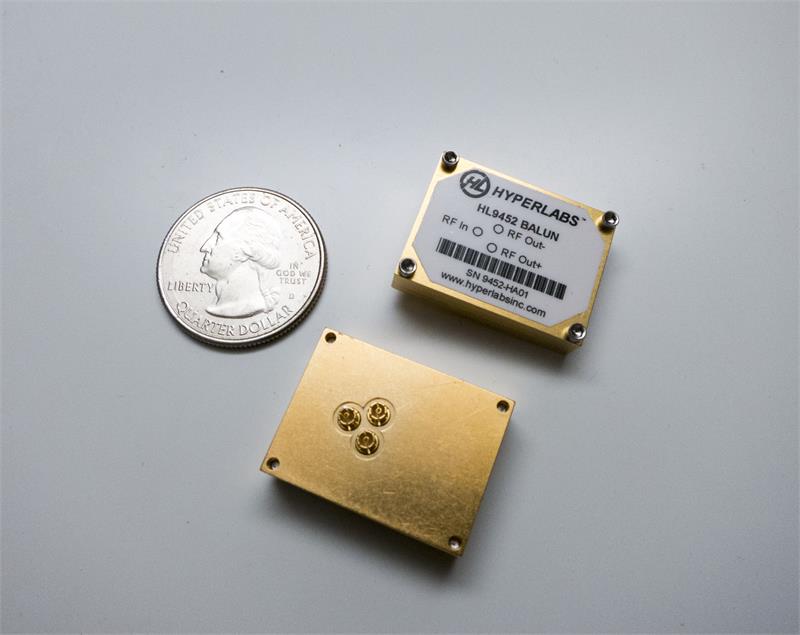

HL9452-B Blindmate Balun (20 GHz)

EFFECTIVE NOVEMBER 5, 2018, THIS PRODUCT IS NO LONGER AVAILABLE FOR PURCHASE. EXISTING CUSTOMERS SHOULD CONTACT HYPERLABS FOR SUPPORT.

The HL9452-B is a blindmate (snap-in) broadband balun with typical ± 0.1 dB amplitude match from 5 MHz to 20 GHz (-3 dB) and ± 3 degree phase match typical at 10 GHz.

This product is optimized for use in high-speed analog-to-digital conversion, differential signal generation, harmonic distortion minimization, and pulse inversion.

The HL9452-B is designed to be installed onto printed circuit boards, offering unmatched on-board performance for aerospace, R&D, and other cutting-edge applications.

For connectorized as well as drop-in SMT variants, please see our other broadband baluns.
