HL9464 Broadband Z-matched Pick-off Tee (DC to 40 GHz)
HL9464-M

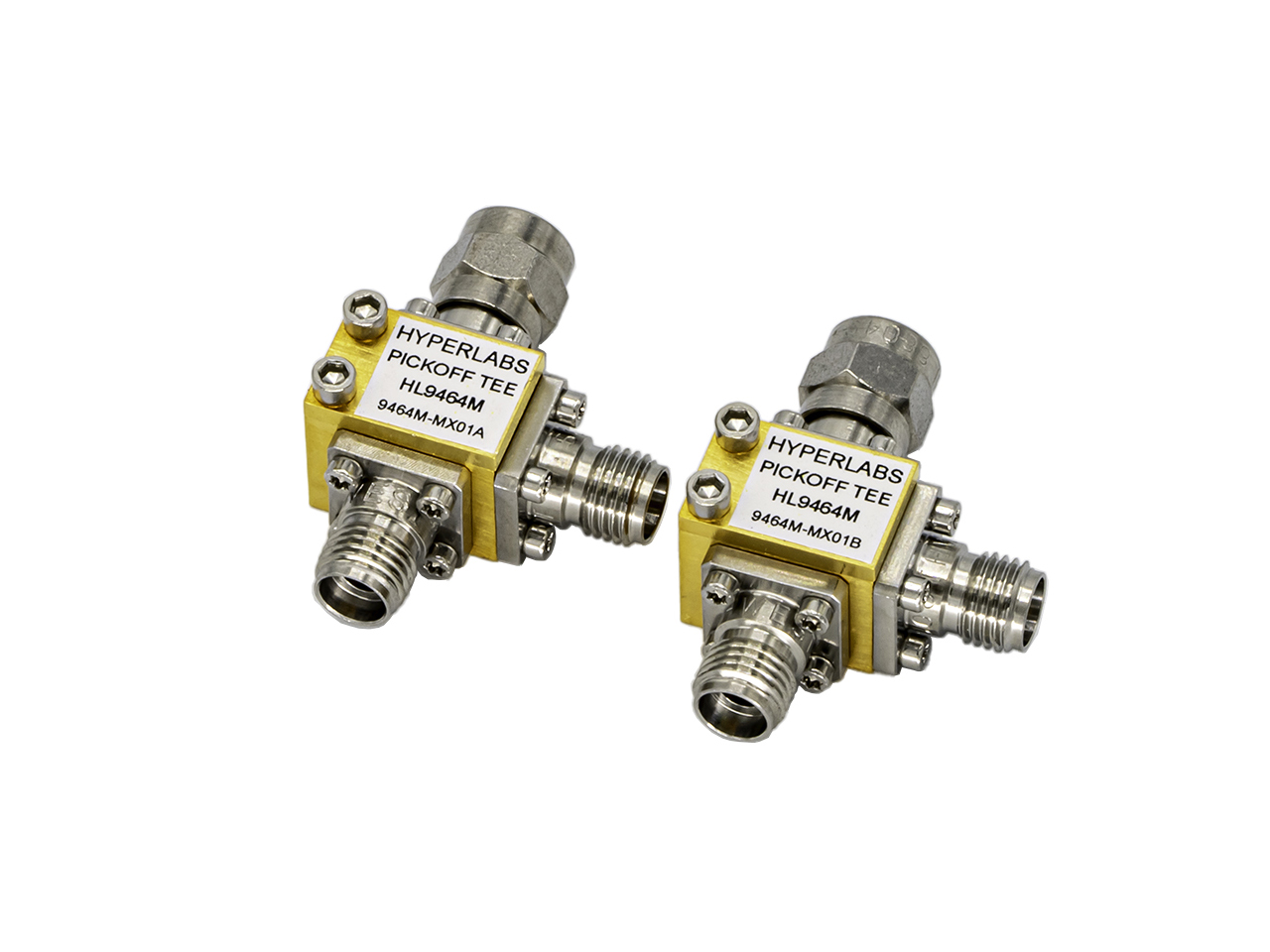

HL9464, opt. -M-JPJ shown

HL9464 Broadband Z-matched Pick-off Tee (DC to 40 GHz) - Image 2

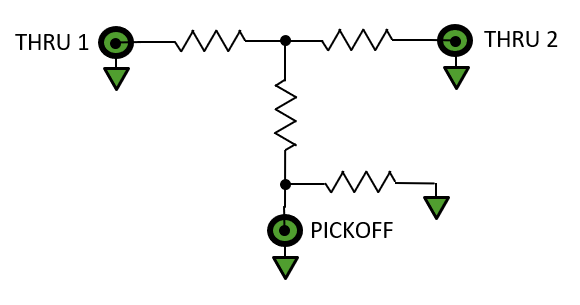

HL9464_block
HL9464 Broadband Z-matched Pick-off Tee (DC to 40 GHz) - Image 3

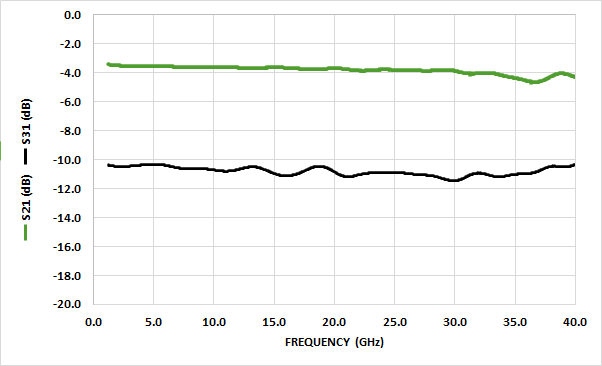

HL9464_Sparams

HL9464 Broadband Z-matched Pick-off Tee (DC to 40 GHz)

$2,295.00 – $4,595.00

Datasheet  | S-parameters  | STEP File

The HL9464 Broadband Z-matched Pick-off Tee, available as either matched pairs (opt. -M) or individual devices (opt. -U), offers flat frequency response from DC to 40 GHz on both the thru pick-off lines.

It is suitable as a trigger source with minimum perturbation of the thru signal path. Digital oscilloscope applications include pre-scaler triggering, synchronization, and clock/data recovery.

This product is part of our line of Broadband Pick-off Tees.

Key Specifications (typical)
Bandwidth DC to 40 GHz, thru and pick-off lines
Insertion Loss 3.5 ± 0.5 dB, thru line
10.5 ± 1 dB, pick-off line
Amplitude Match (opt. -M) ± 0.1 dB
Phase Match (opt. -M) ± 2°, f =10 GHz
± 5°, f = 20 GHz
Return Loss > 15 dB, f ≤ 30 GHz, thru line
> 10 dB, f > 30 GHz, thru line
> 20 dB, f ≤ 20 GHz, pick-off line
> 15 dB, f > 20 GHz, pick-off line
Group Delay  ≈ 110 ps, thru line (opt. -JJJ)
≈ 90 ps, thru line (opt. -JPJ)
≈ 120 ps, pick-off line (all opts.)
Connectors 2.92 mm jack, all ports (opt. -JJJ)
2.92 mm jack, Thru 1 and Pick-off; 2.92 mm plug, Thru 2 (opt. -JPJ)
Unit Dimensions 26.41 x 22.86 x 13.59 mm (1.10 x 0.90 x 0.54″)
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement
