HL9465 Broadband Z-matched Pick-off Tee (DC to 50 GHz)
HL9465-M

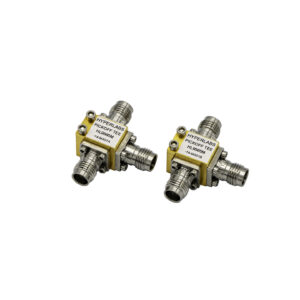

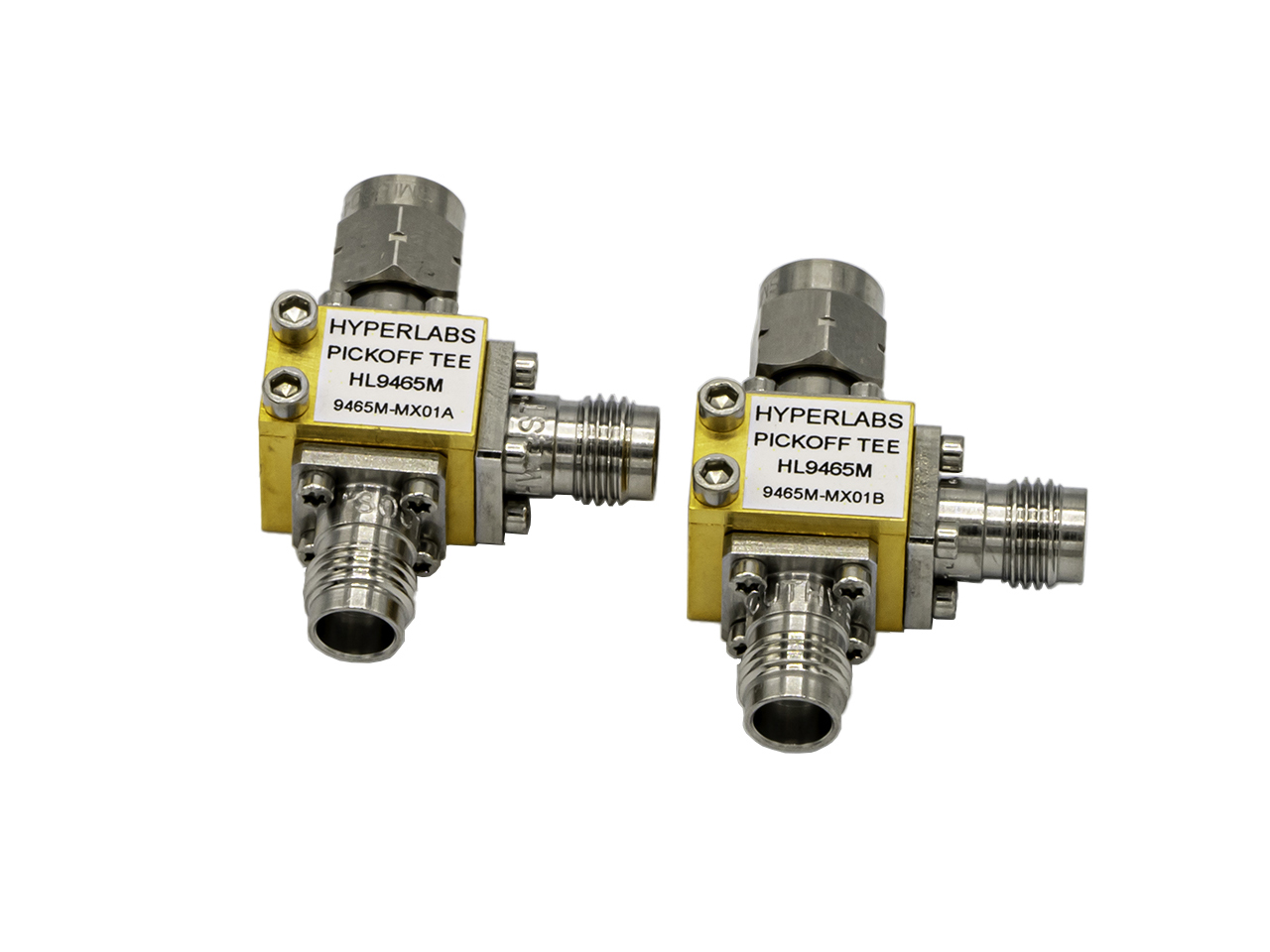

HL9465, opt. -M-JPJ shown

HL9465 Broadband Z-matched Pick-off Tee (DC to 50 GHz) - Image 2

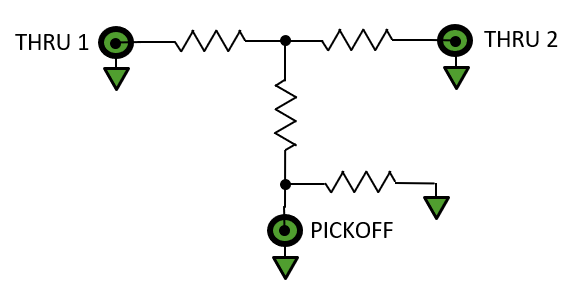

HL9465_block
HL9465 Broadband Z-matched Pick-off Tee (DC to 50 GHz) - Image 3

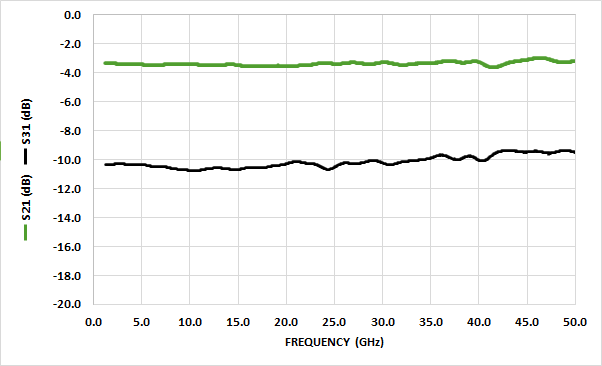

HL9465_Sparams

HL9465 Broadband Z-matched Pick-off Tee (DC to 50 GHz)

$2,795.00 – $5,595.00

Datasheet  | S-parameters  | STEP File

The HL9465 Broadband Z-matched Pick-off Tee, available as either matched pairs (opt. -M) or individual devices (opt. -U), offers flat frequency response from DC to 50 GHz on both the thru pick-off lines.

It is suitable as a trigger source with minimum perturbation of the thru signal path. Digital oscilloscope applications include pre-scaler triggering, synchronization, and clock/data recovery.

This product is part of our line of Broadband Pick-off Tees.

Key Specifications (typical)
Bandwidth DC to 50 GHz, thru and pick-off lines
Insertion Loss 3.5 ± 0.5 dB, thru line
10.5 ± 1 dB, pick-off line
Amplitude Match (opt. -M) ± 0.1 dB
Phase Match (opt. -M) ± 2°, f =10 GHz
± 5°, f = 20 GHz
Return Loss > 12.5 dB, f ≤ 35 GHz, thru line
> 10 dB, f > 35 GHz, thru line
> 20 dB, f ≤ 25 GHz, pick-off line
> 15 dB, f > 25 GHz, pick-off line
Group Delay  ≈ 125 ps, thru line (opt. -JJJ)
≈ 115 ps, thru line (opt. -JPJ)
≈ 125 ps, pick-off line (all opts.)
Connectors 2.4 mm jack, all ports (opt. -JJJ)
2.4 mm jack, Thru 1 and Pick-off; 2.4 mm plug, Thru 2 (opt. -JPJ)
Unit Dimensions 32.69 x 24.23 x 13.59 mm (1.29″ x 0.95″ x 0.54″)
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement
