HL9467 Broadband Z-matched Pick-off Tee (DC to 67 GHz)
HL9467-M

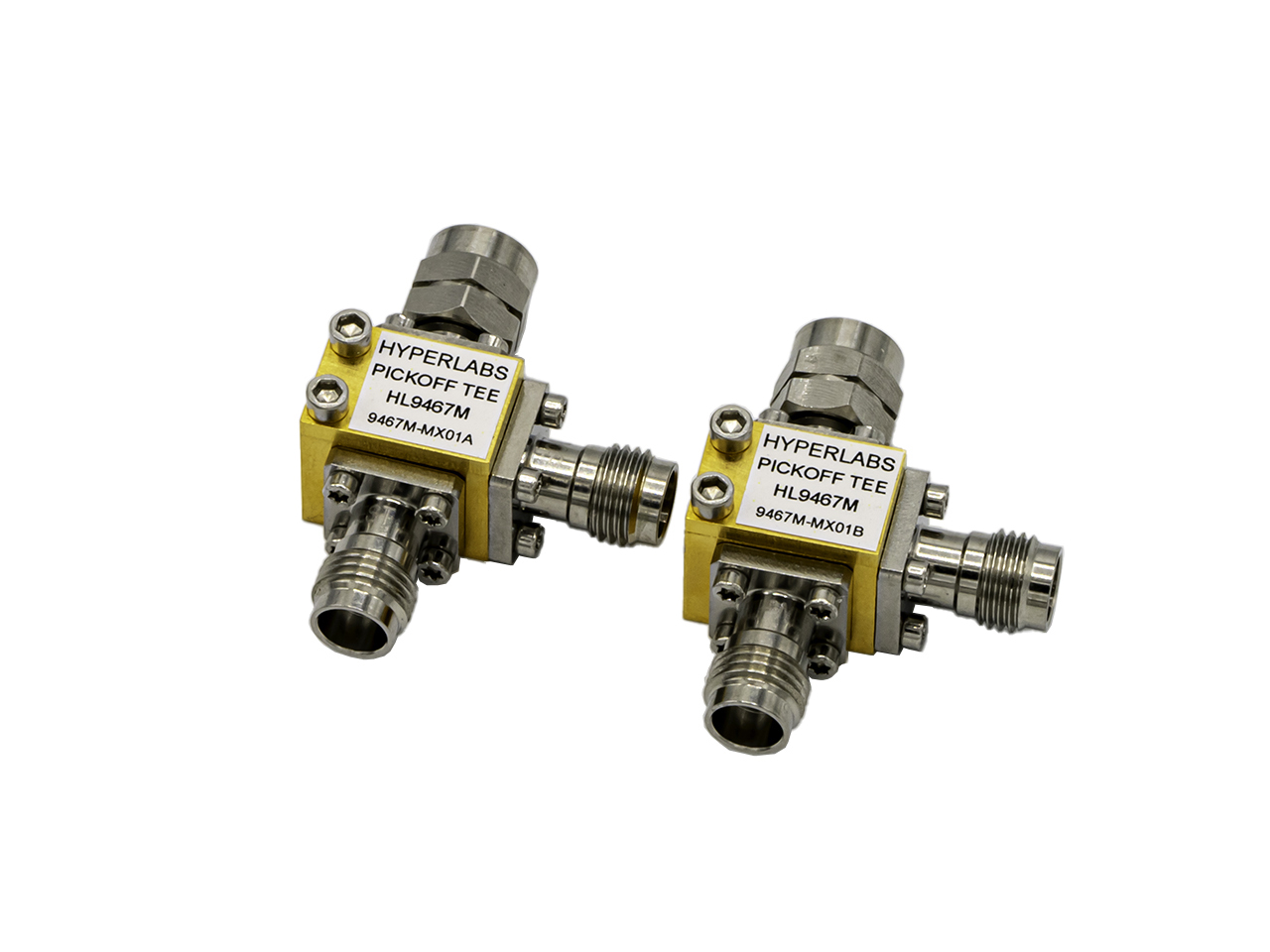

HL9467, opt. -M-JPJ shown

HL946x Series Block Diagram
HL9467_block
HL9467 Broadband Z-matched Pick-off Tee (DC to 67 GHz) - Image 3

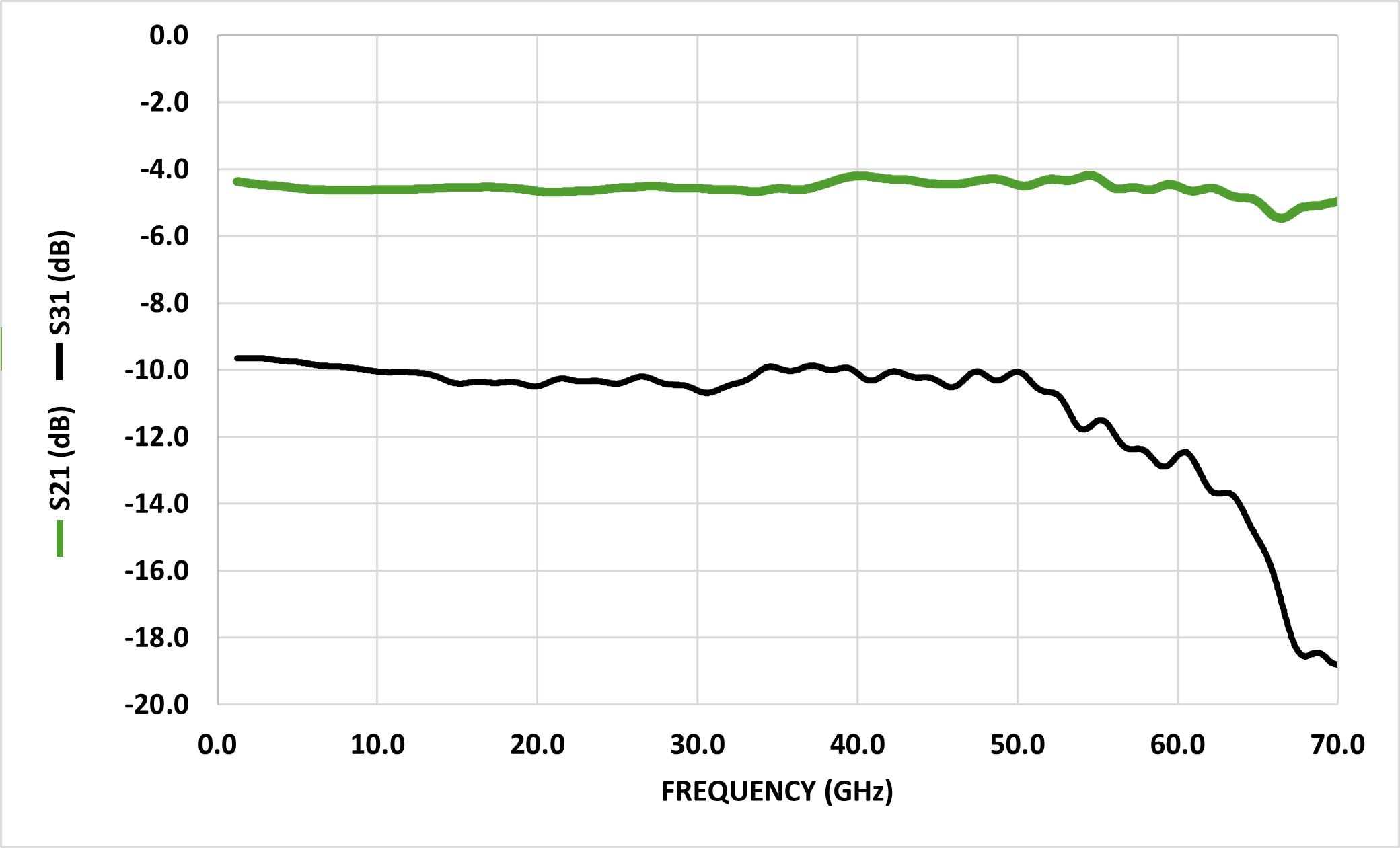

HL9467_Sparams

HL9467 Broadband Z-matched Pick-off Tee (DC to 67 GHz)

$3,295.00 – $6,595.00

Datasheet  | S-parameters

The HL9467 Broadband Z-matched Pick-off Tee, available as either matched pairs (opt. -M) or individual devices (opt. -U), offers flat frequency response from DC to 67 GHz on the thru line and 55 GHz on the pick-off line.

It is suitable as a trigger source with minimum perturbation of the thru signal path. Digital oscilloscope applications include pre-scaler triggering, synchronization, and clock/data recovery.

This product is part of our line of Broadband Pick-off Tees.

Key Specifications (typical)
Bandwidth DC to 67 GHz, thru line
DC to 55 GHz, pick-off line
Insertion Loss 4.0 ± 0.75 dB, thru line
10.0 ± 1 dB, pick-off line
Amplitude Match (opt. -M) ± 0.25 dB
Phase Match (opt. -M) ± 2°, f = 10 GHz
± 5°, f = 20 GHz
Return Loss > 25 dB, f ≤ 25 GHz, thru line
> 15 dB, f > 25 GHz, thru line
> 15 dB, f ≤ 30 GHz, pick-off line
> 10 dB, f > 30 GHz, pick-off line
Group Delay  ≈ 115 ps, thru line (opt. -JJJ)
≈ 125 ps, thru line (opt. -JPJ)
≈ 125 ps, pick-off line (all opts.)
Connectors 1.85 mm jack, all ports (opt. -JJJ)
1.85 mm jack, Thru 1 and Pick-off; 1.85 mm plug, Thru 2 (opt. -JPJ)
Unit Dimensions 30.75 x 24.23 x 13.59 mm (1.21” x 0.95” x 0.54”)
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement
