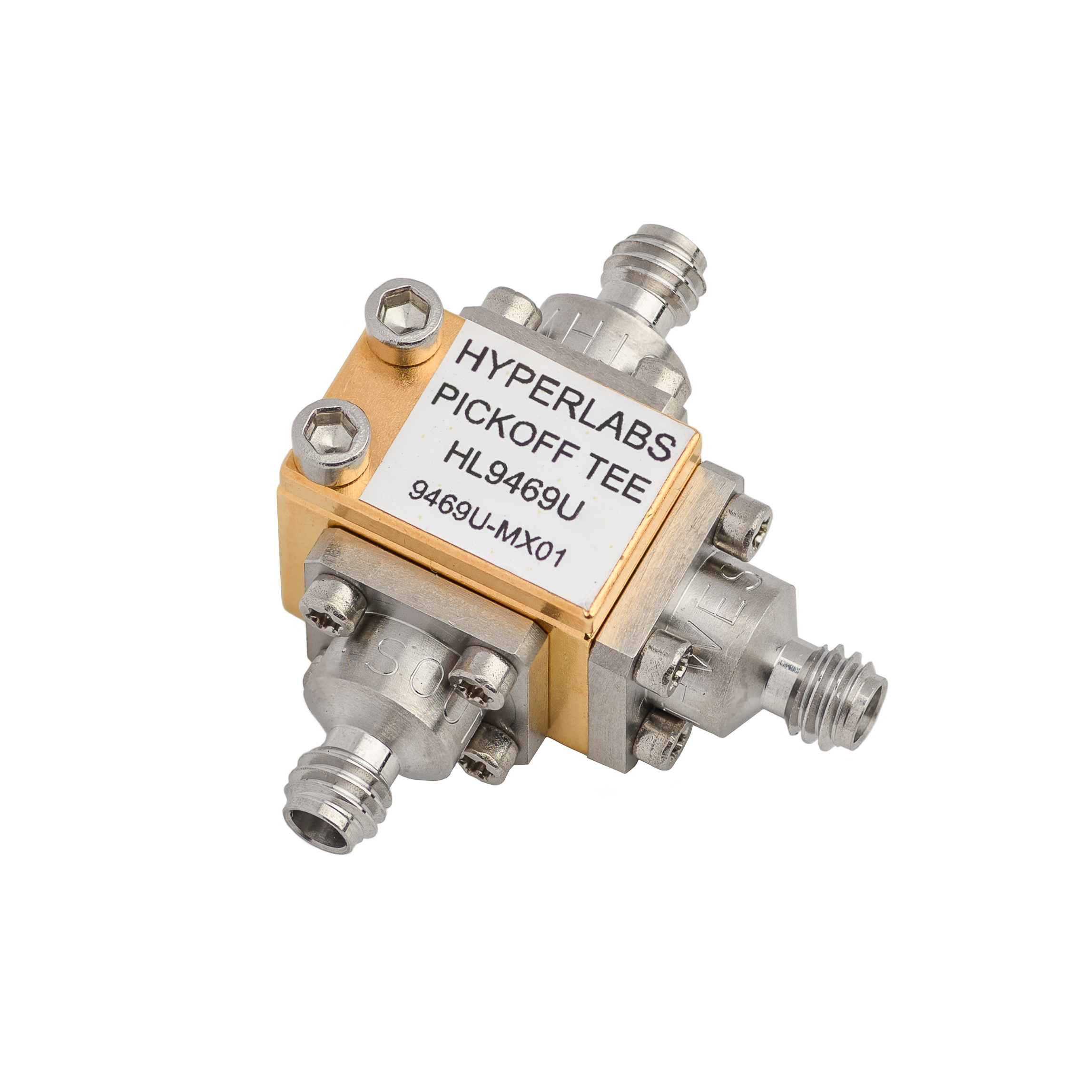

HL9469 Broadband Z-matched Pick-off Tee (DC to 110 GHz)
HL9469_web

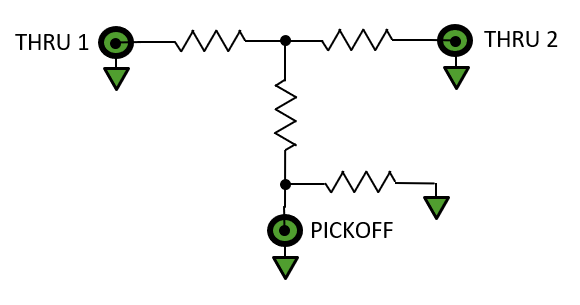

HL946x Series Block Diagram
HL9467_block
HL9469 Broadband Z-matched Pick-off Tee (DC to 110 GHz) - Image 3
HL9469_IL small

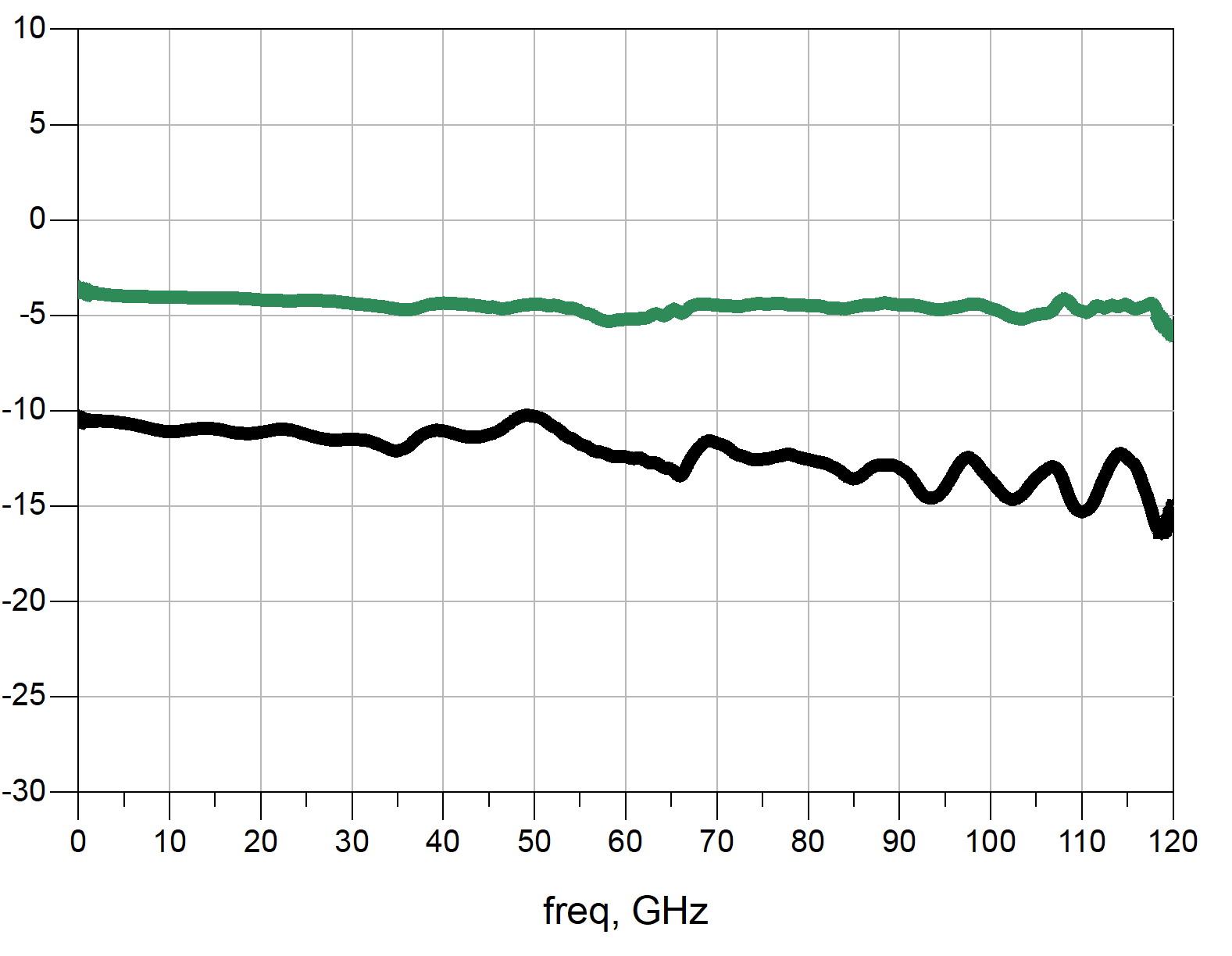

HL9469 Insertion Loss (thru and pick-off lines)

HL9469 Broadband Z-matched Pick-off Tee (DC to 110 GHz)

$5,495.00 – $11,490.00

Datasheet  | S-parameters

The HL9469 Broadband Z-matched Pick-off Tee, available as either matched pairs (opt. -M) or individual devices (opt. -U), offers flat frequency response from DC to 110 GHz on both the thru and pick-off lines.

It is suitable for use in 224 Gbps PAM4 communications systems, and as a trigger source with minimum perturbation of the thru signal path. Another common application is for the injection of amplitude noise on the thru path for datacom compliance testing. Digital oscilloscope applications include pre-scaler triggering, synchronization, and clock/data recovery.

This product is part of our line of Broadband Pick-off Tees.

Key Specifications (typical)
Bandwidth DC to 110 GHz, thru line
DC to 110 GHz, pick-off line
Insertion Loss 4.0 ± 1 dB, thru line
11.0 dB, pick-off line
Amplitude Match (opt. -M) ± 0.5 dB, DC < f ≤ 60 GHz
± 0.75 dB, 60 GHz < f ≤ 110 GHz
Thru line only
Phase Match (opt. -M) ± 5°, DC < f ≤ 60 GHz
± 10°, 60 GHz < f ≤ 110 GHz
Thru line only
Return Loss < 15 dB, f ≤ 100 GHz
< 10 dB, 100 GHz ≤ f ≤ 110 GHz
Group Delay  ≈ 105 ps, thru line (opt. -JJJ)
≈ 110 ps, thru line (opt. -JPJ)
≈ 110 ps, pick-off line (all opts.)
Connectors 1.0 mm jack, all ports (opt. -JJJ)
1.0 mm jack, Thru 1 and Pick-off; 1.85 mm plug, Thru 2 (opt. -JPJ)
Unit Dimensions 328.4 x 23.1 x 13.59 mm
(1.140” x 0.908” x 0.535”)
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement
