HL9475 Broadband Resistive Power Divider (DC to 50 GHz)
HL9475

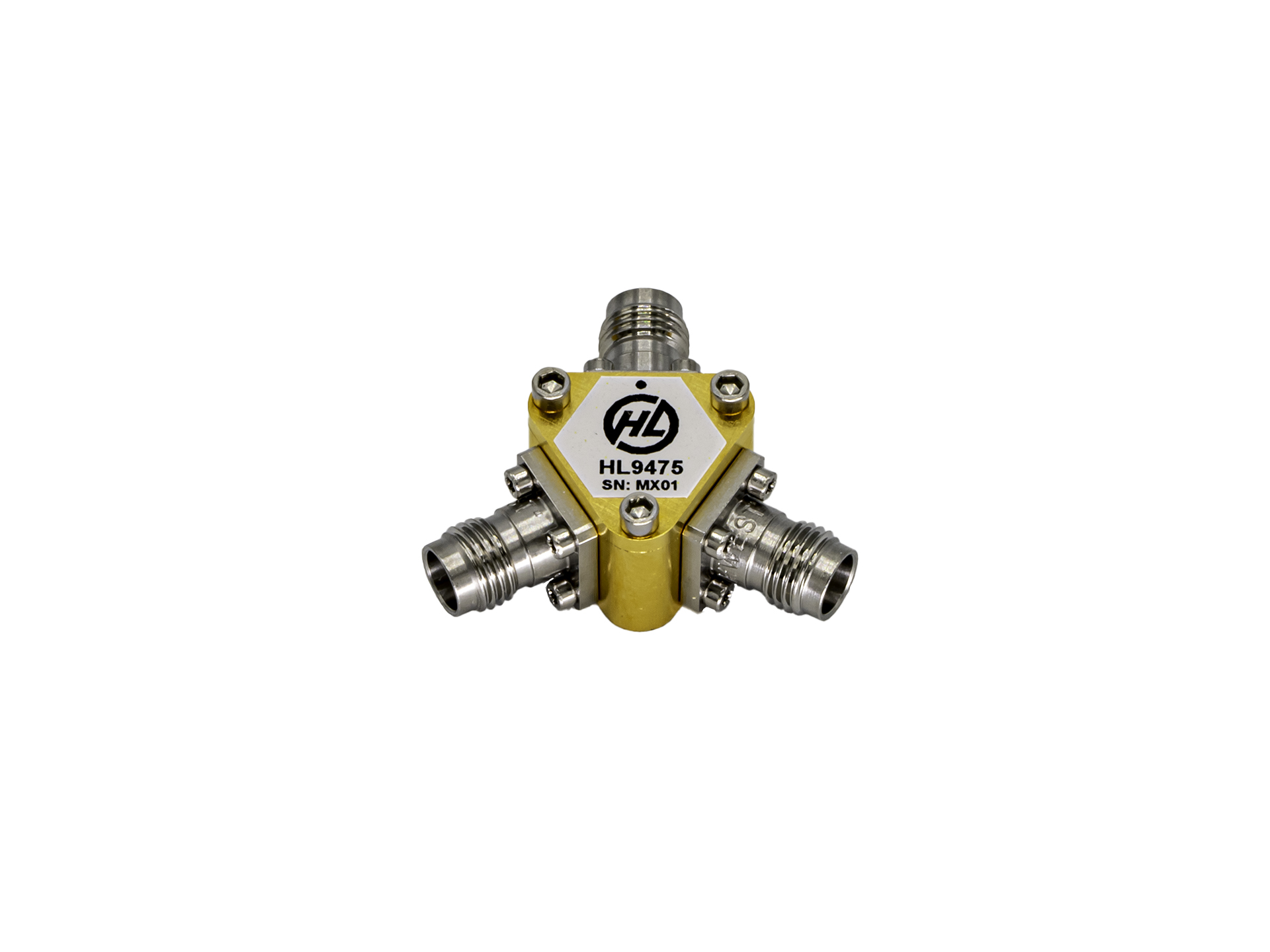

HL9475 Broadband Resistive Power Divider (DC to 50 GHz)

HL9475 Broadband Resistive Power Divider (DC to 50 GHz) - Image 2
HL947x_block

HL947x Series block diagram

HL9475 Broadband Resistive Power Divider (DC to 50 GHz) - Image 3
HL9477_Sparam

Typical HL947x Series insertion loss (model HL9477 shown)

HL9475 Broadband Resistive Power Divider (DC to 50 GHz) - Image 4
HL9477_112Gbps_PAM4_Output

HL947x Series 112 Gbps PAM4, RF Output (model HL9477 shown)

HL9475 Broadband Resistive Power Divider (DC to 50 GHz)

$1,395.00

Datasheet  | S-parameters

The HL9475 is a 6 dB power divider that provides outstanding amplitude and phase symmetrical power division from DC to 50 GHz.

This ROHS-compliant product is designed using a three-resistor network resulting in outputs that are nominally attenuated to 6 dB, and all ports are impedance-matched to 50 Ohms when the ports are terminated.

They are suitable for use in 112 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.

For other high-performance power divider products, please see our complete line of ultra-broadband power dividers.

Key Specifications (typical)
Bandwidth (1.5 dB) DC to 50 GHz
Amplitude Match ± 0.1 dB
Phase Match ± 4 degrees, f = 20 GHz
± 8 degrees, f = 40 GHz
Insertion Loss (AC) 6 dB
Connectors 2.4 mm; 3x jack
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

NOTE #1: Port 1 is marked with a dot on the label. Ports 2 and 3 are amplitude- and phase-matched.

SKU: HL9475 Category:
