HL9479 Broadband Resistive Power Divider (DC to 110 GHz)

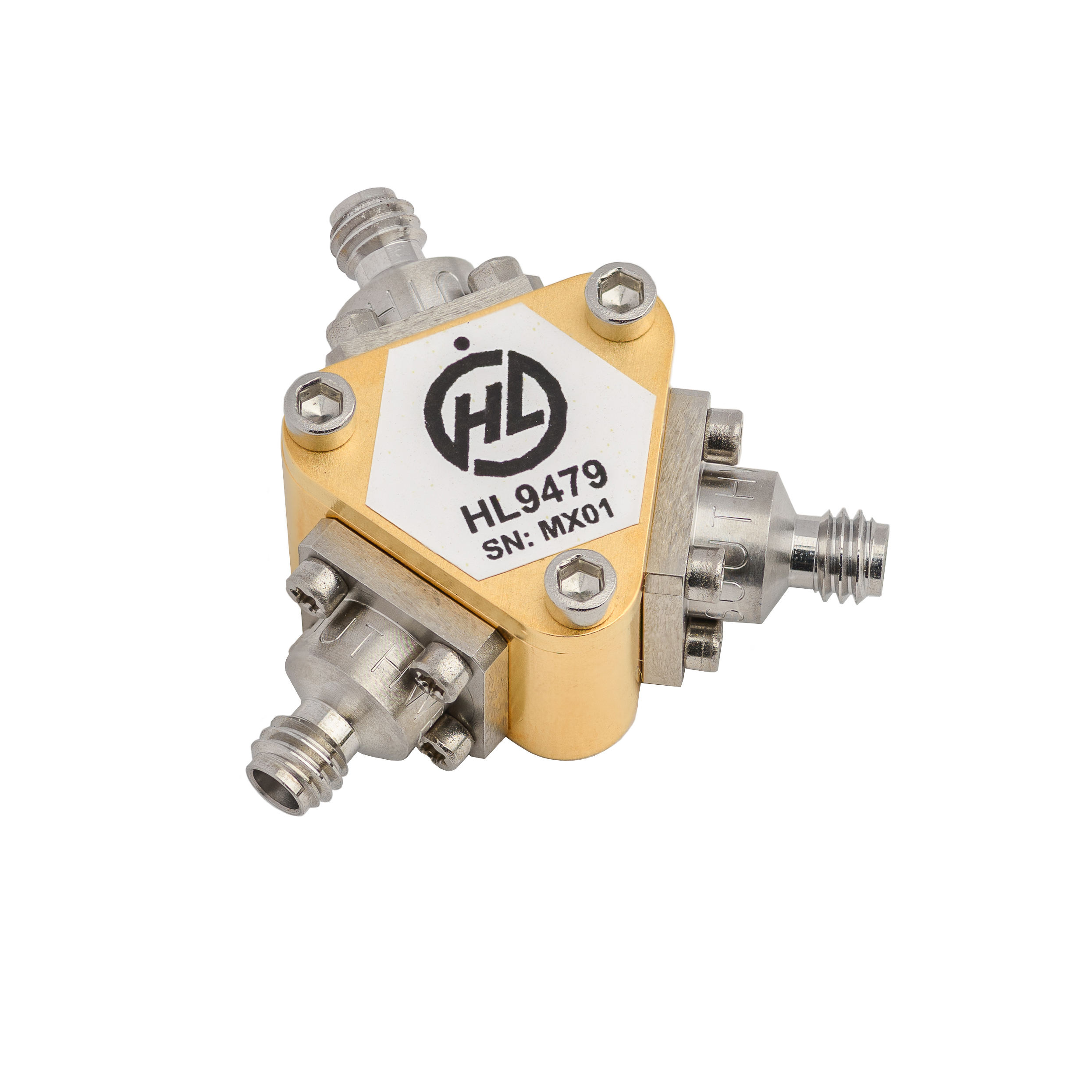

HL9479_web
HL9479 Broadband Resistive Power Divider (DC to 110 GHz) - Image 2
HL947x_block

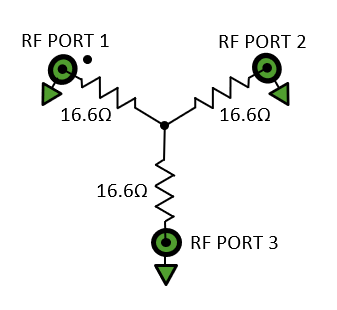

HL947x Series block diagram

HL9479 Broadband Resistive Power Divider (DC to 110 GHz) - Image 3
HL9479_IL small

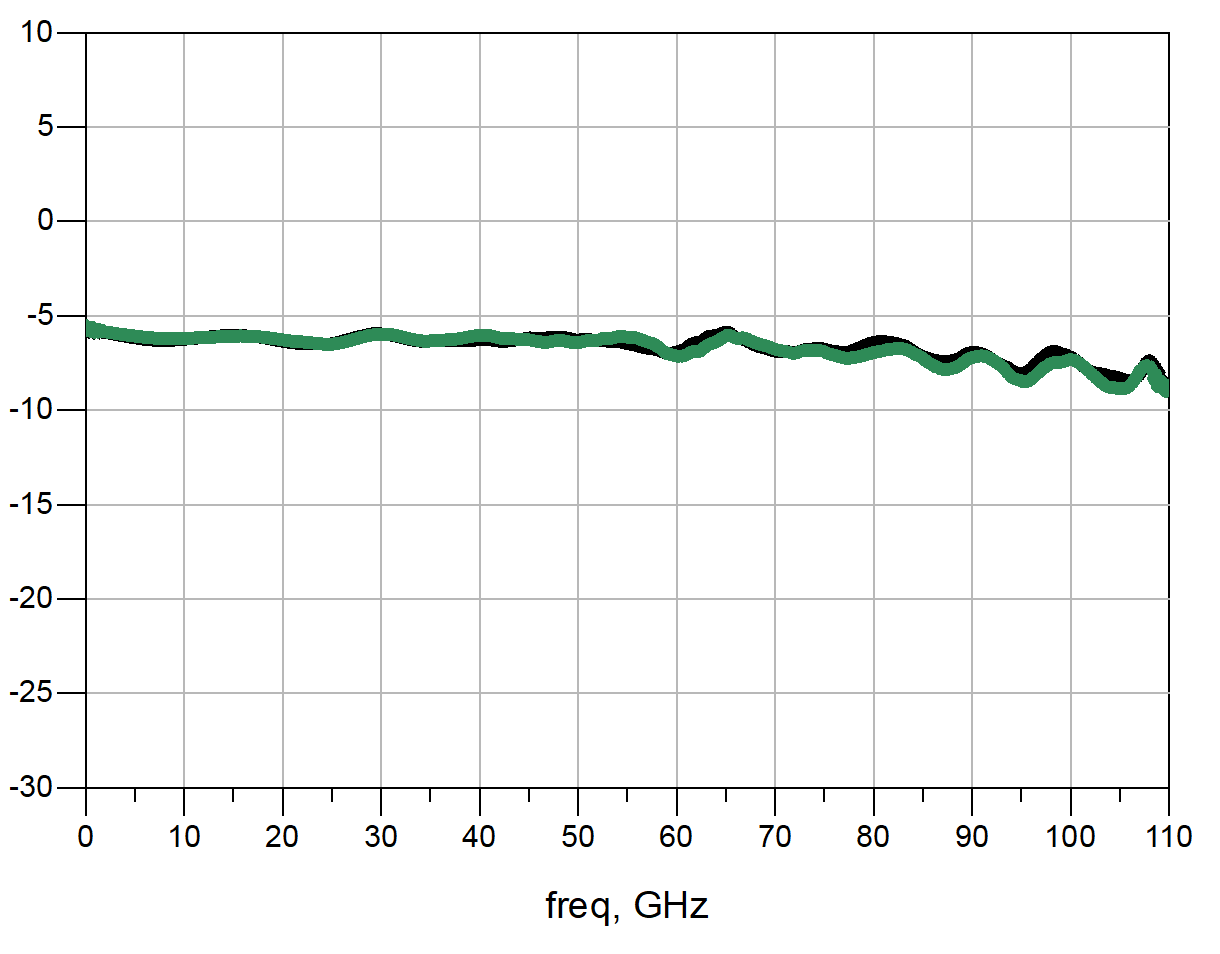

HL9479 Insertion Loss (typical)

HL9479 Broadband Resistive Power Divider (DC to 110 GHz)

$4,995.00

Datasheet  | S-parameters

The HL9479 is a 6 dB power divider that provides outstanding amplitude and phase symmetrical power division from DC to 110 GHz.

This ROHS-compliant product is designed using a three-resistor network resulting in outputs that are nominally attenuated to 6 dB, and all ports are impedance-matched to 50 Ohms when the ports are terminated.

They are suitable for use in 224 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.

For other high-performance power divider products, please see our complete line of ultra-broadband power dividers.

Key Specifications (typical)
Bandwidth (1.5 dB) DC to 110 GHz
Amplitude Match ± 0.3 dB, DC < f ≤ 50 GHz
± 0.5 dB, 50 < f ≤ 80 GHz
± 1.0 dB, 80 < f ≤ 110 GHz
Phase Match ± 5°, DC < f ≤ 50 GHz
± 10°, 50 < f ≤ 80 GHz
± 10°, 80 < f ≤ 110 GHz
Insertion Loss (AC) 6 dB
Connectors 1.0 mm; 3x jack
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

NOTE #1: Port 1 is marked with a dot on the label. Ports 2 and 3 are amplitude- and phase-matched.
