HL9484 Broadband Resistive Power Splitter (DC to 40 GHz)
HL9484_web

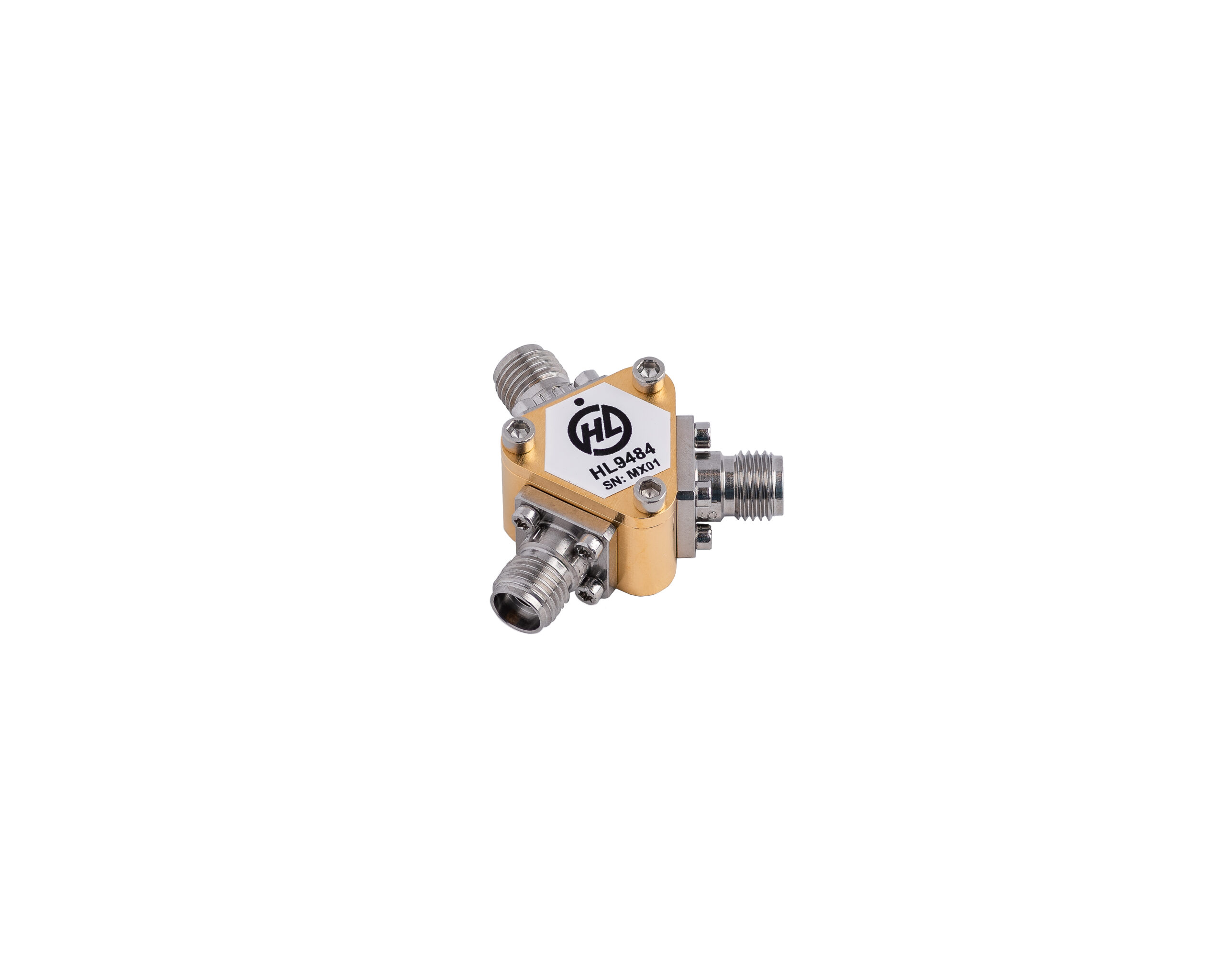

HL9484 Broadband Resistive Power Splitter (DC to 40 GHz)

HL9484 Broadband Resistive Power Splitter (DC to 40 GHz) - Image 2
HL948x_block

HL948x Series block diagram

HL9484 Broadband Resistive Power Splitter (DC to 40 GHz) - Image 3
HL9487_Sparam

Typical HL948x Series insertion loss (model HL9487 shown)

HL9484 Broadband Resistive Power Splitter (DC to 40 GHz)

$1,195.00

Datasheet  | S-parameters

The HL9484 is a symmetrical, two-resistor power splitter that provides outstanding amplitude and phase symmetrical power division from DC to 40 GHz.

This ROHS-compliant product is suitable for making power ratio measurements as accuracy of the divided outputs is extremely well tracked. The precision of the divided outputs  allows for measurements to be taken with a high level of ratio-metric certainty.

For other high-performance power splitter products, please see our complete line of ultra-broadband power dividers.

Key Specifications (typical)
Bandwidth (1.5 dB) DC to 40 GHz
Amplitude Match ± 0.1 dB
Phase Match ± 4 degrees, f = 20 GHz
± 8 degrees, f = 40 GHz
Insertion Loss (AC) 6 dB
Connectors 2.92 mm; 3x jack
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

NOTE #1: Port 1 is marked with a dot on the label. Ports 2 and 3 are amplitude- and phase-matched.
