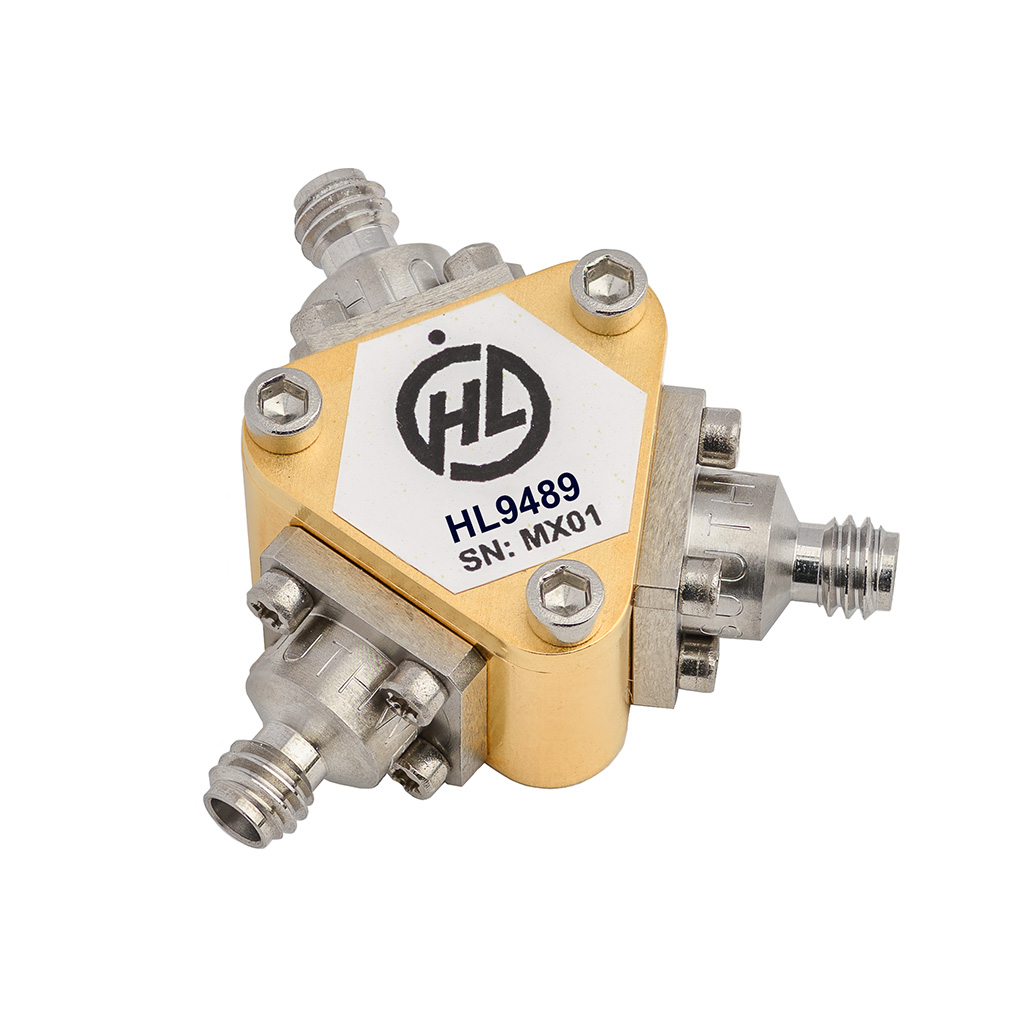

HL9489 Broadband Resistive Power Splitter (DC to 100 GHz)
$4,995.00

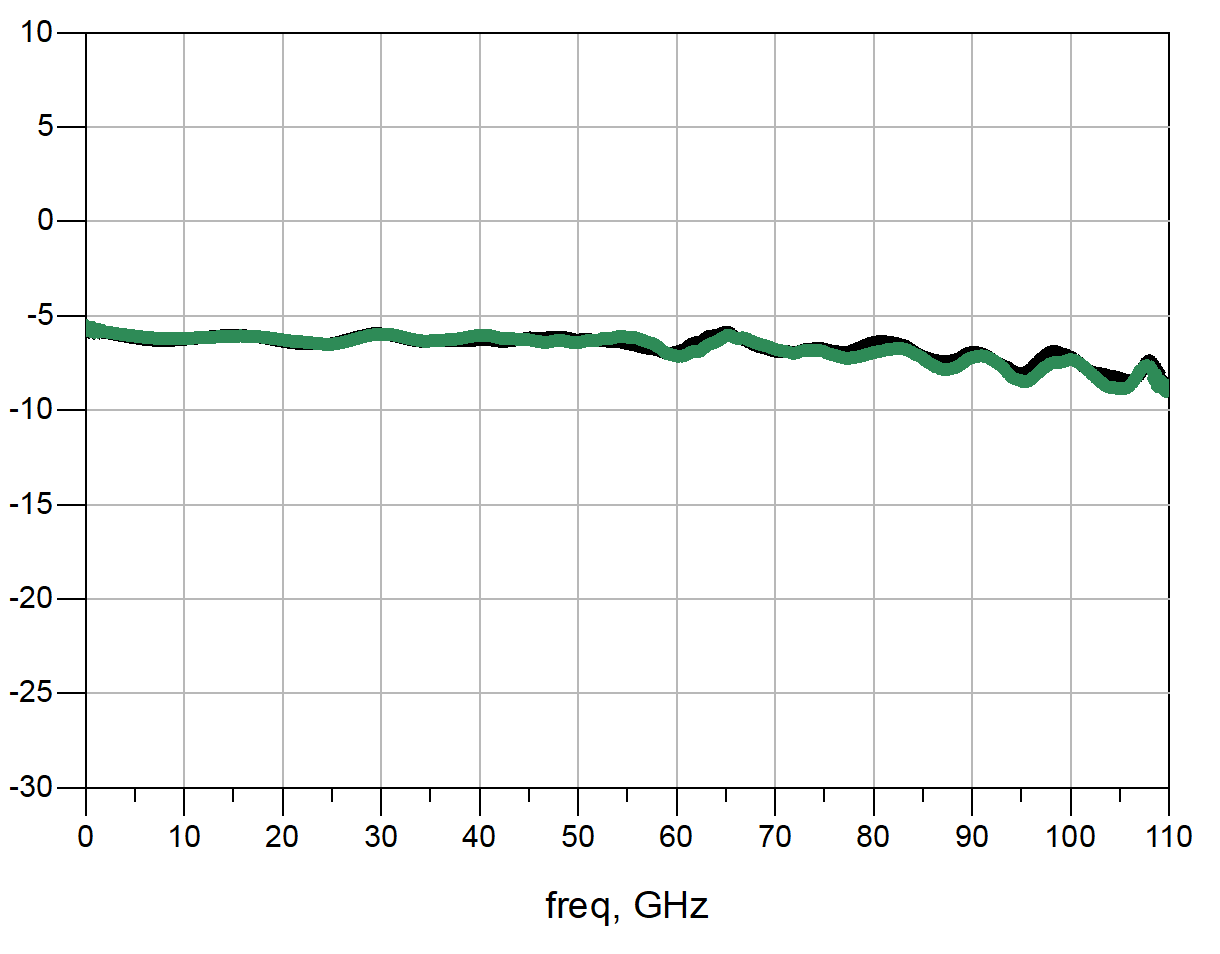

Datasheet | S-parameters
The HL9487 is a symmetrical, two-resistor power splitter that provides outstanding amplitude and phase symmetrical power division from DC to beyond 100 GHz.
This ROHS-compliant product is suitable for making power ratio measurements as accuracy of the divided outputs is extremely well tracked. The precision of the divided outputs allows for measurements to be taken with a high level of ratio-metric certainty.
For other high-performance power splitter products, please see our complete line of ultra-broadband power dividers.
Key Specifications (typical)
| Bandwidth (2 dB) | DC to 100 GHz |
|---|---|
| Amplitude Match | ± 0.1 dB, DC < f ≤ 70 GHz ± 0.3 dB, 70 < f ≤ 110 GHz |
| Phase Match | ± 2 degrees, DC < f ≤ 50 GHz ± 4 degrees, 50 < f ≤ 85 GHz ± 8 degrees, 85 < f ≤ 100 GHz |
| Insertion Loss (AC) | 7 dB |
| Connectors | 1.0 mm; 3x jack |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |

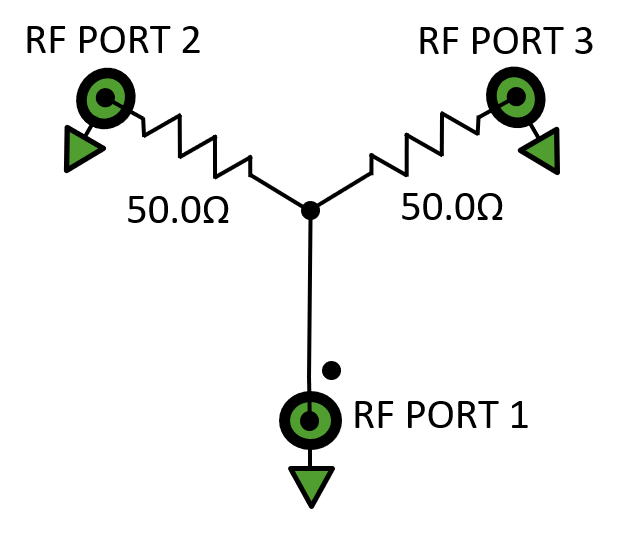

NOTE #1: Port 1 is marked with a dot on the label. Ports 2 and 3 are amplitude- and phase-matched.
