HL9491 Broadband SMD Balun (1 MHz to 20 GHz)
HL9491 Broadband SMD Balun (1 MHz to 20 GHz)
DISCONTINUED
As of April 2025, this part is no longer offered for sale to new customers. Existing customers may contact us for support.

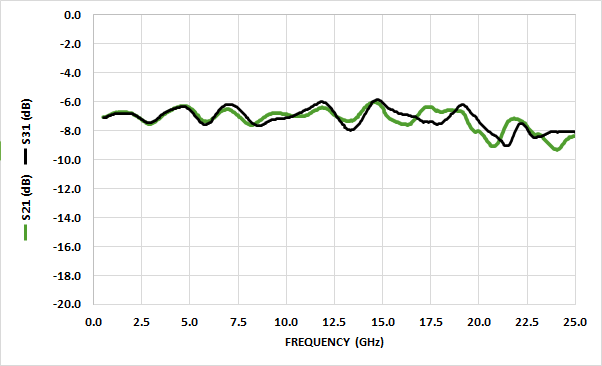

Datasheet | S-parameters | Footprint | STEP File

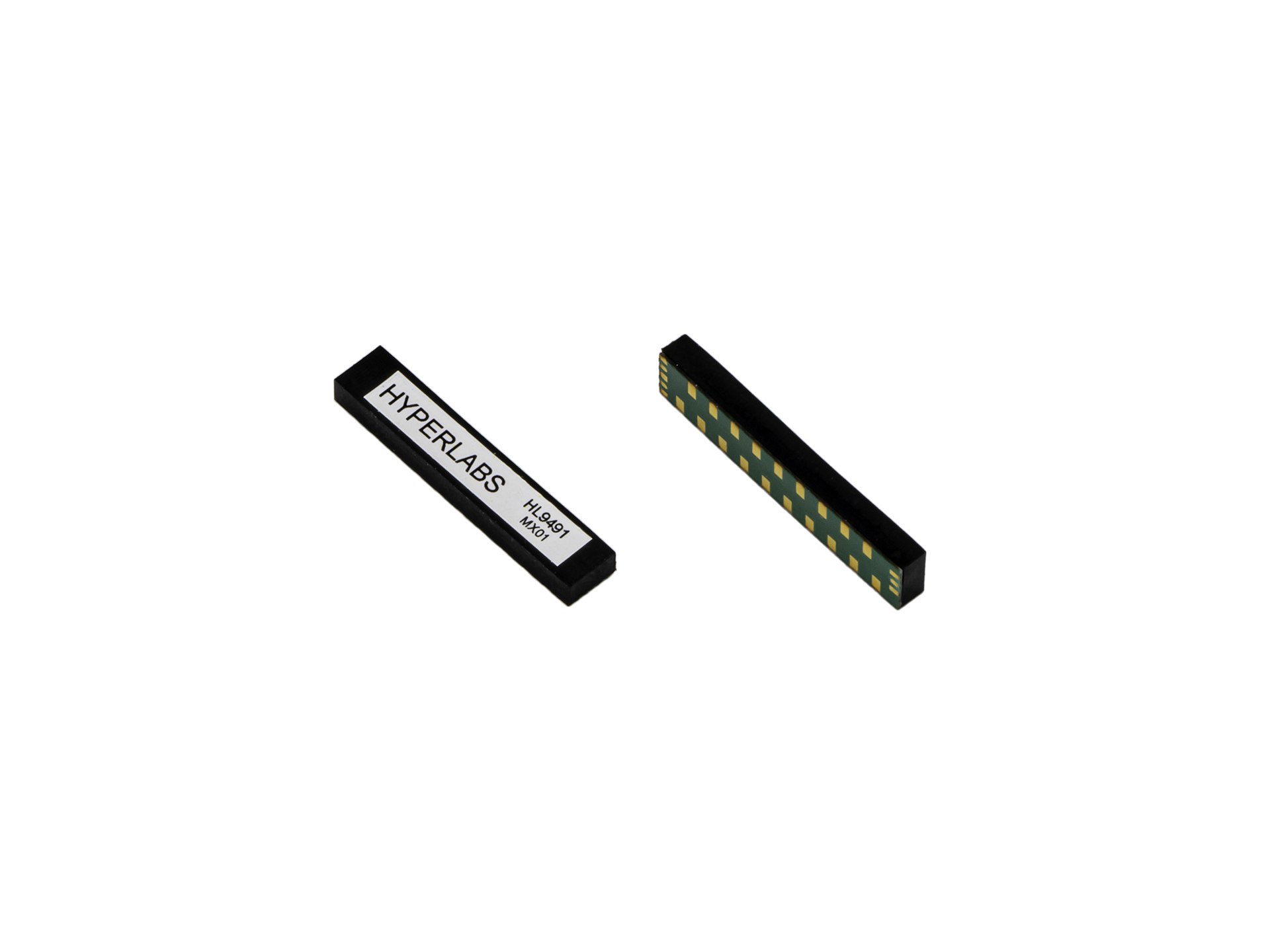

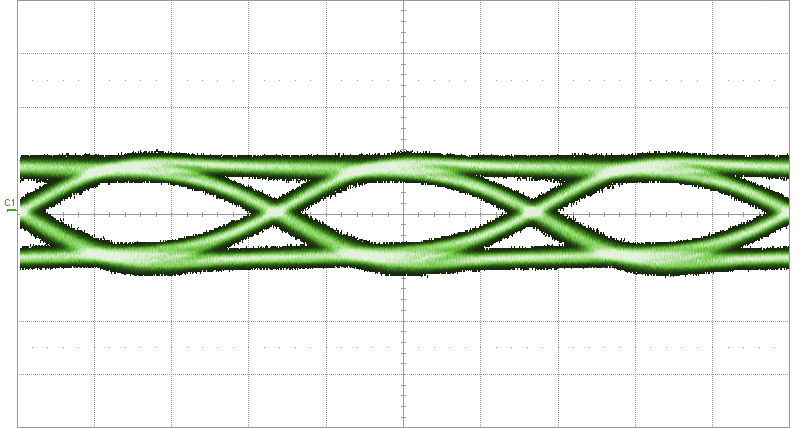

The HL9491 is a surface mountable (SMD) signal splitter and combiner that offers excellent amplitude and phase match over an industry-best bandwidth of 1 MHz to 20 GHz (3 dB).
This ROHS-compliant product is optimized for use in high-speed analog-to-digital conversion, differential signal generation, harmonic distortion minimization, and pulse inversion.
For other high-performance balun products, please see our complete line of ultra-broadband baluns.
Key Specifications (typical)
| Bandwidth | 1 MHz to 20 GHz |
|---|---|
| Amplitude Match | ± 0.4 dB, typical |
| Phase Match | ± 5 degrees, f = 10 GHz |
| Insertion Loss | 7 dB nominal |
| Interface | Solderable pads, Gold ENIG |
| Evaluation Board | Available as Opt. -EVAL |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
NOTE #1: If the DC voltage of the balanced or unbalanced ports is non-zero, DC blocks are required. The balanced ports (2 and 3) are DC shorted..
NOTE #2: To achieve maximum amplitude match to the specified frequency, our baluns are designed to require highly-accurate (< 1%) 50 Ω terminations on the differential outputs.
