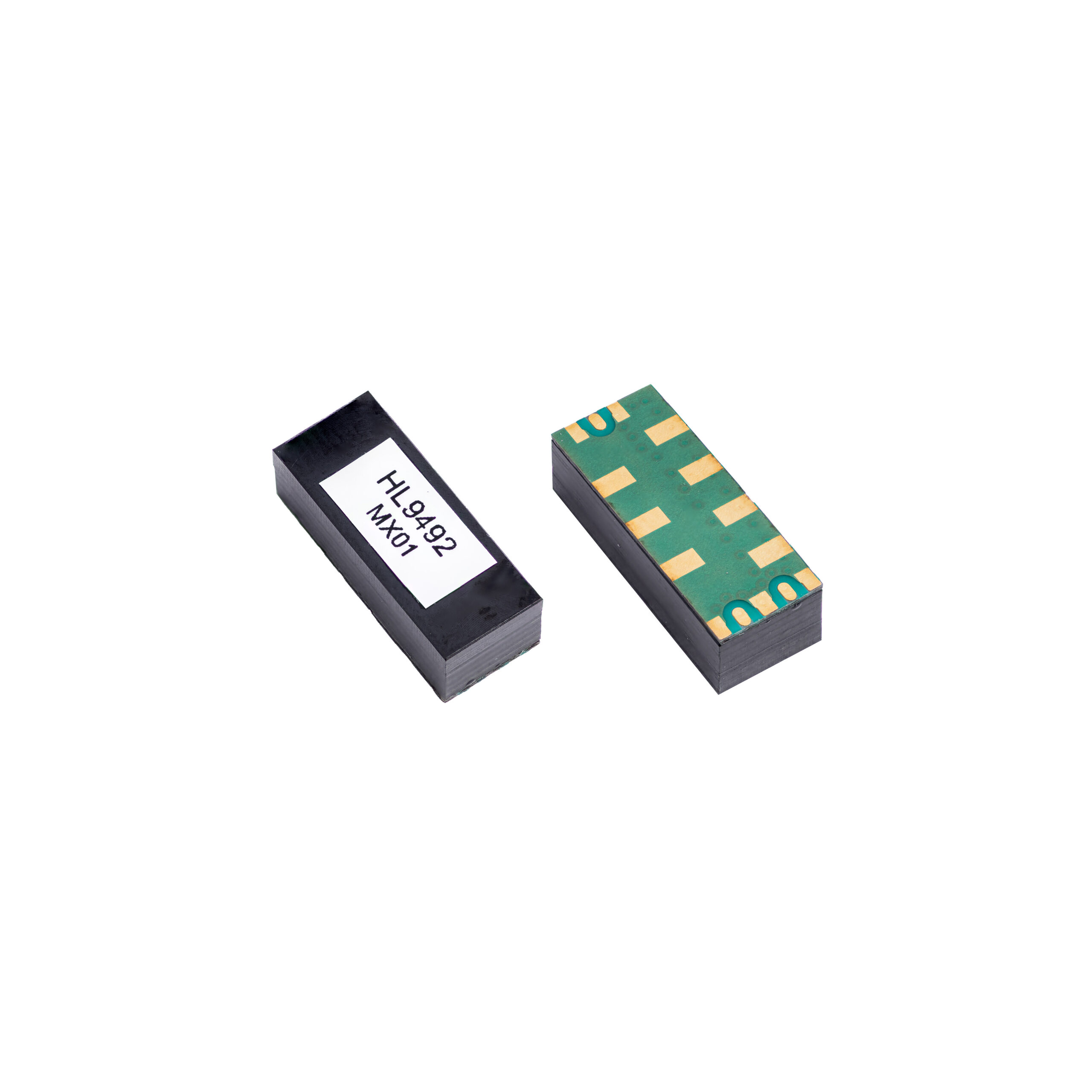

HL9492 Broadband SMD Balun (3 MHz to 30 GHz)
HL9492 Broadband SMD Balun (5 MHz to 30 GHz)
$449.00 – $1,290.00
Please contact us for pricing on quantities below 250 pcs.
Datasheet | S-parameters | Footprint
The HL9492 is a surface mountable (SMD) signal splitter and combiner that offers excellent amplitude and phase match over an industry-best bandwidth of 5 MHz to 30 GHz (3 dB).
This ROHS-compliant product is optimized for use in high-speed analog-to-digital conversion, differential signal generation, harmonic distortion minimization, and pulse inversion.

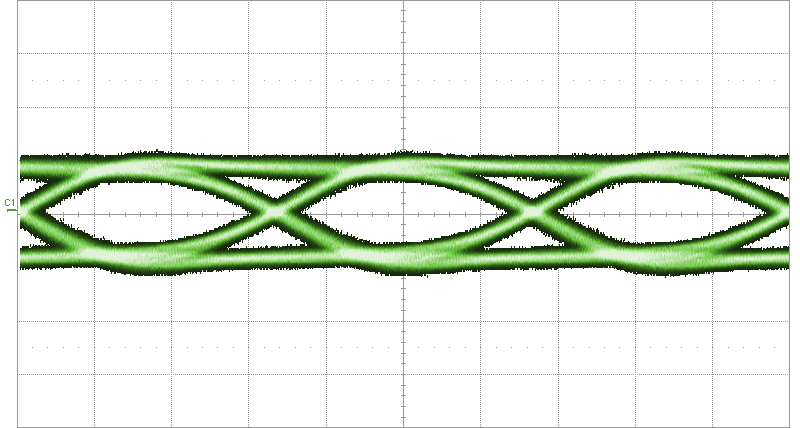

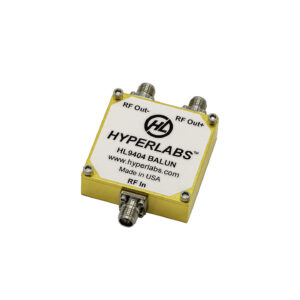

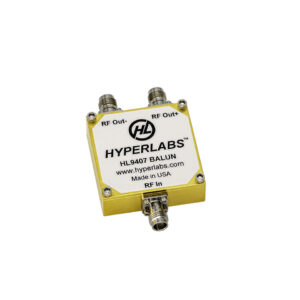

For other high-performance balun products, please see our complete line of ultra-broadband baluns.
Key Specifications (typical)
| Bandwidth | 5 MHz to 30 GHz |
|---|---|

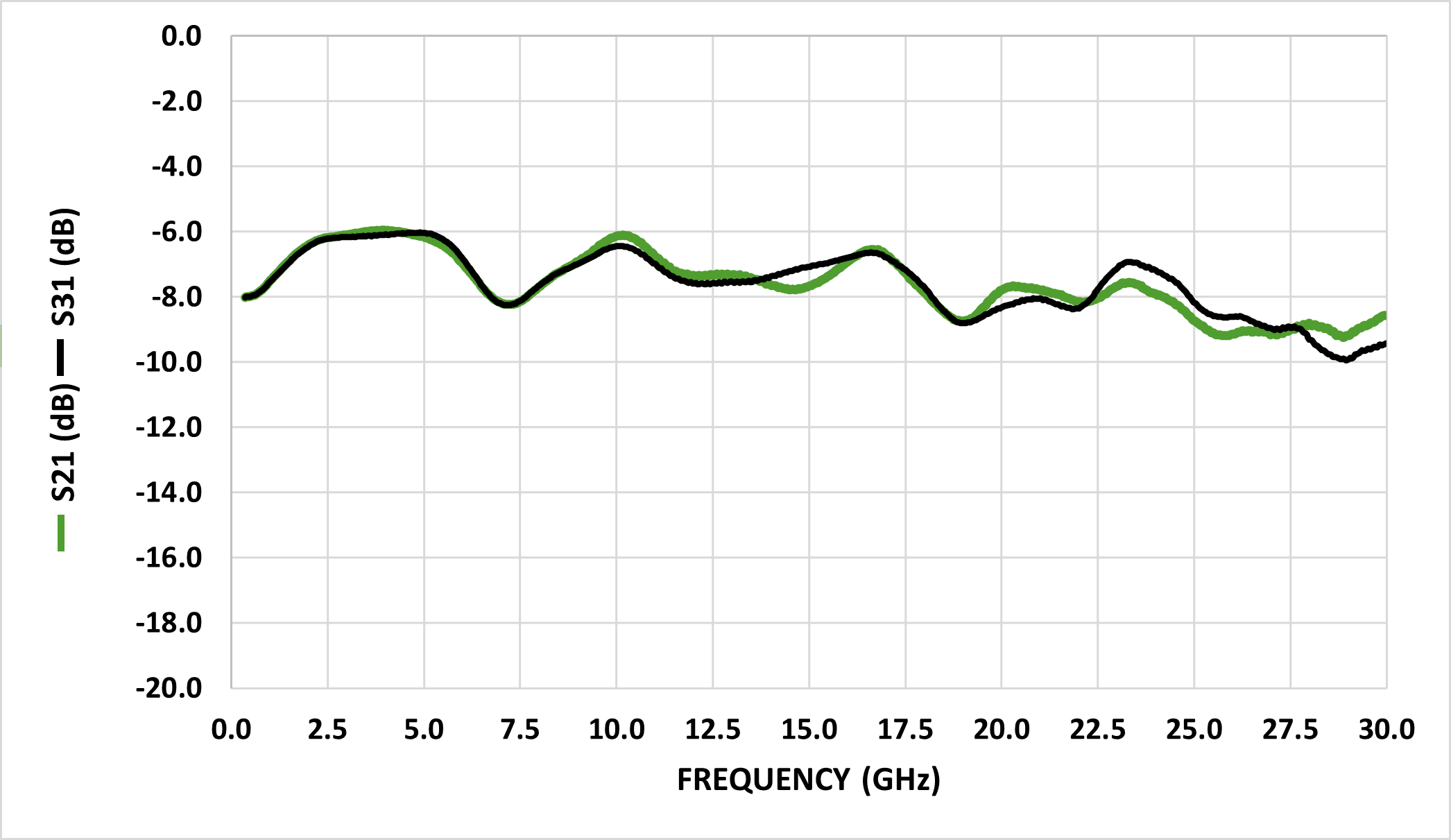

| Amplitude Match | ± 0.4 dB, typical |
| Phase Match | ± 5 degrees, f = 10 GHz |
| Insertion Loss | 7 dB nominal |
| Interface | Solderable pads, Gold ENIG |
| Evaluation Board | Available as Opt. -EVAL |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |

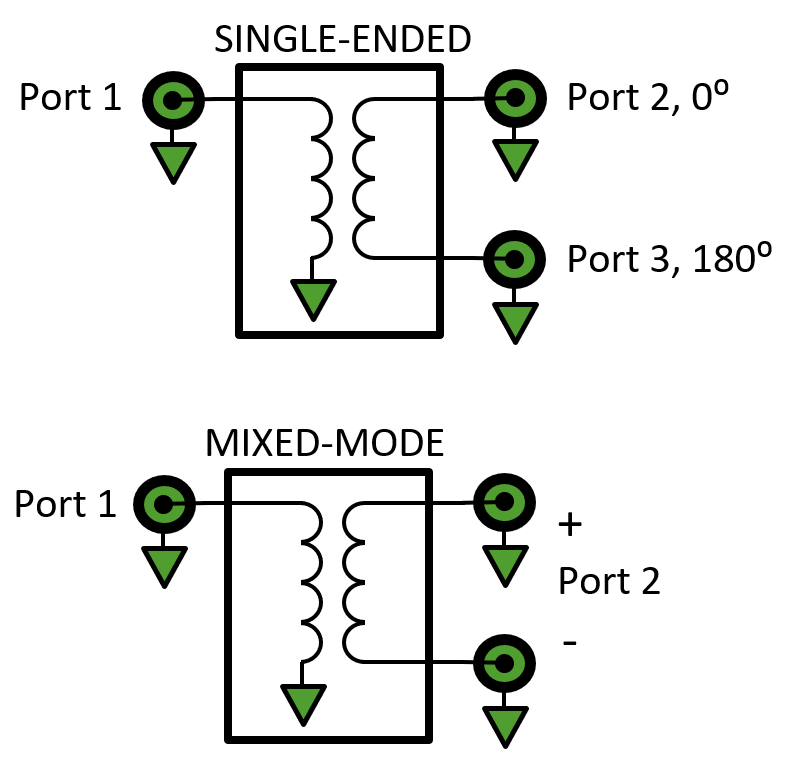

NOTE #1: If the DC voltage of the balanced or unbalanced ports is non-zero, DC blocks are required. The balanced ports (2 and 3) are DC shorted..
NOTE #2: To achieve maximum amplitude match to the specified frequency, our baluns are designed to require highly-accurate (< 1%) 50 Ω terminations on the differential outputs.
