HL9524

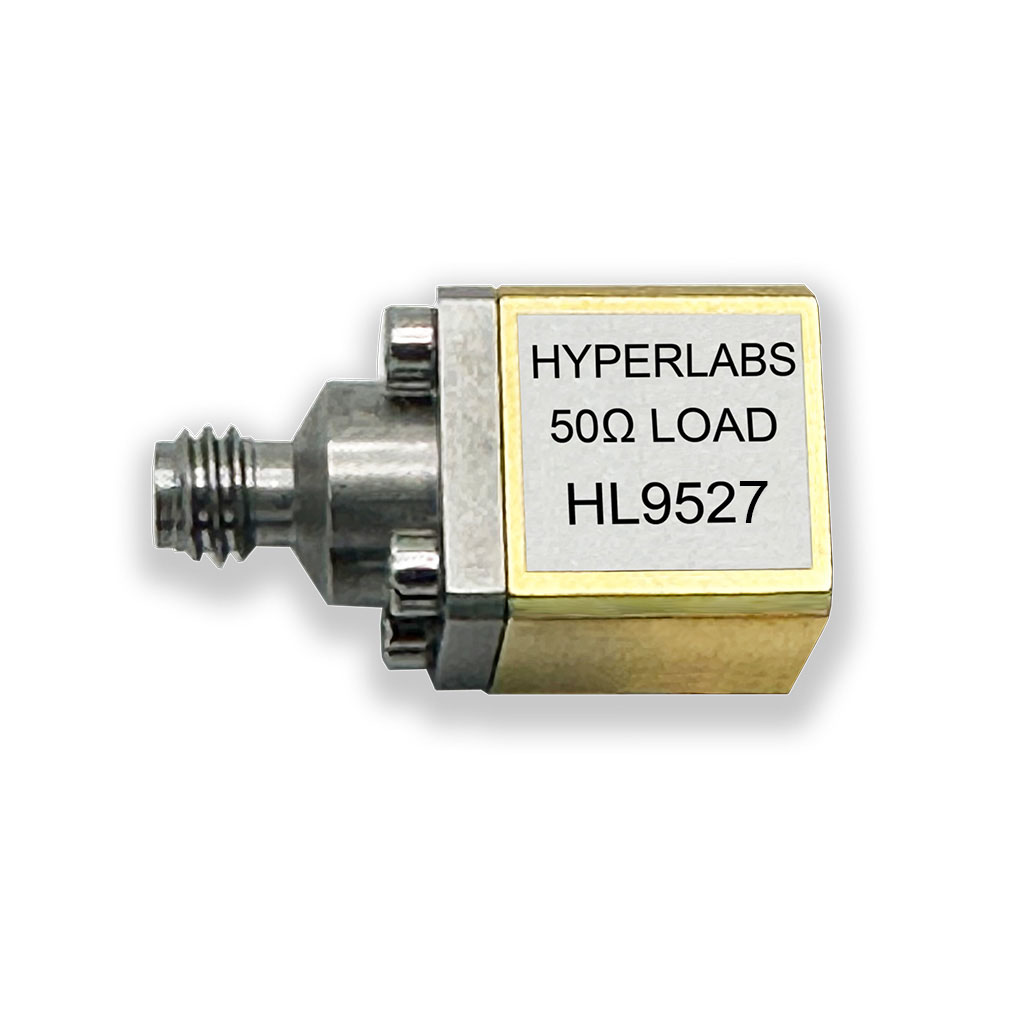

Broadband Termination (similar model HL9527 shown)
HL952x_block

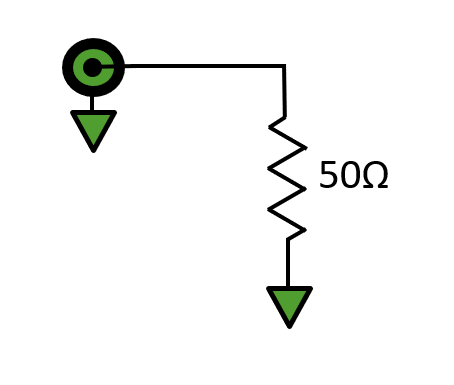

HL952x Block Diagram
HL9529_IL small

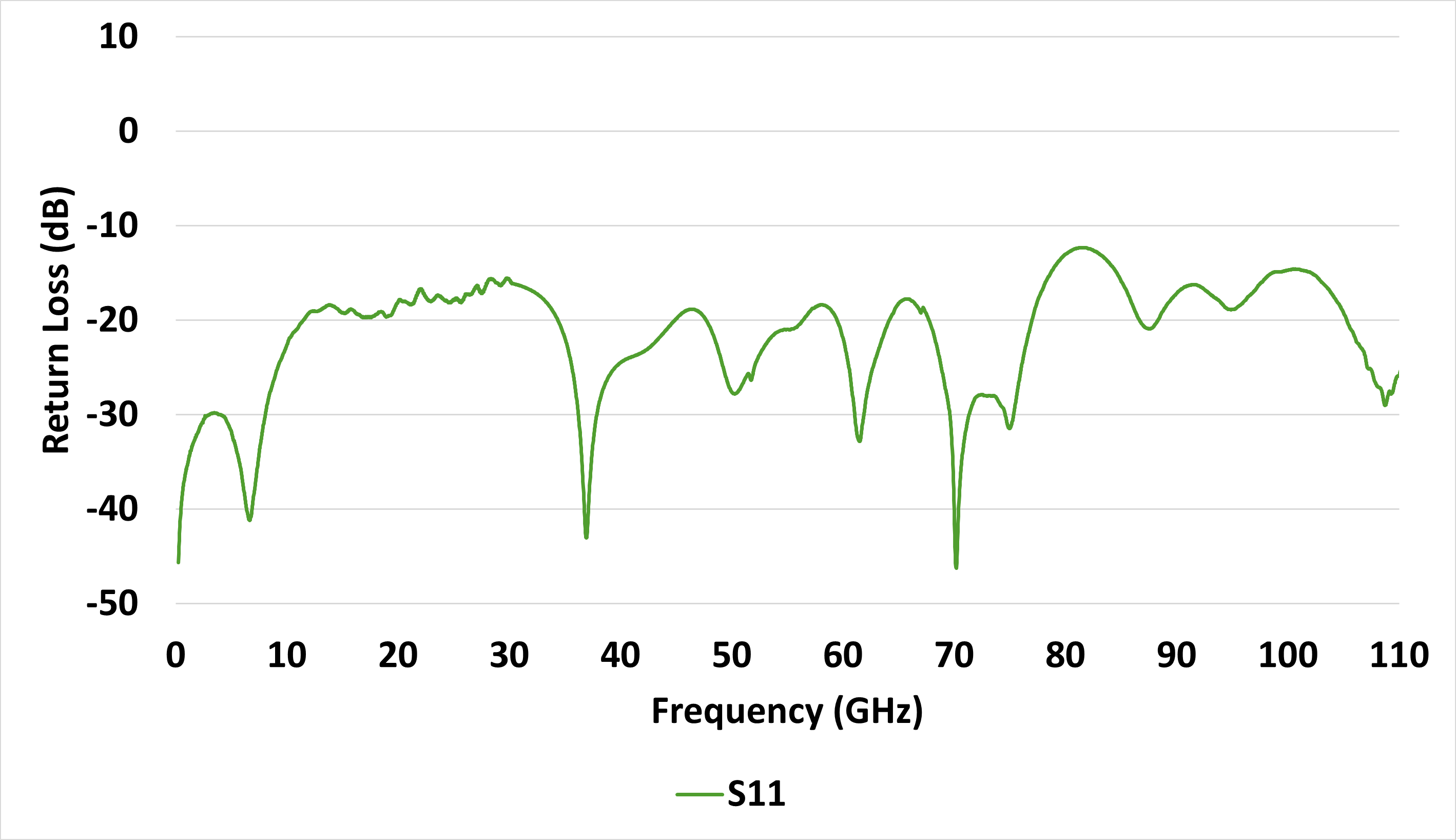

HL9529 Return Loss
HL9524 Broadband Termination (DC to 40 GHz)
$695.00
Datasheet | S-parameters
The HL9524 is an ultra-broadband 50 Ω load termination.
These devices are typically used to provide a matched (dummy) load on an unused port to prevent unwanted reflections.
Typical applications include 5G Wireless, test & measurement, radar systems, and Mil/Aero.
Key Specifications (typical)
| Bandwidth | DC to 40 GHz |
|---|---|
| Return Loss (AC) | 25 dB, DC < f ≤ 40 GHz |
| Connectors | 2.92 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
