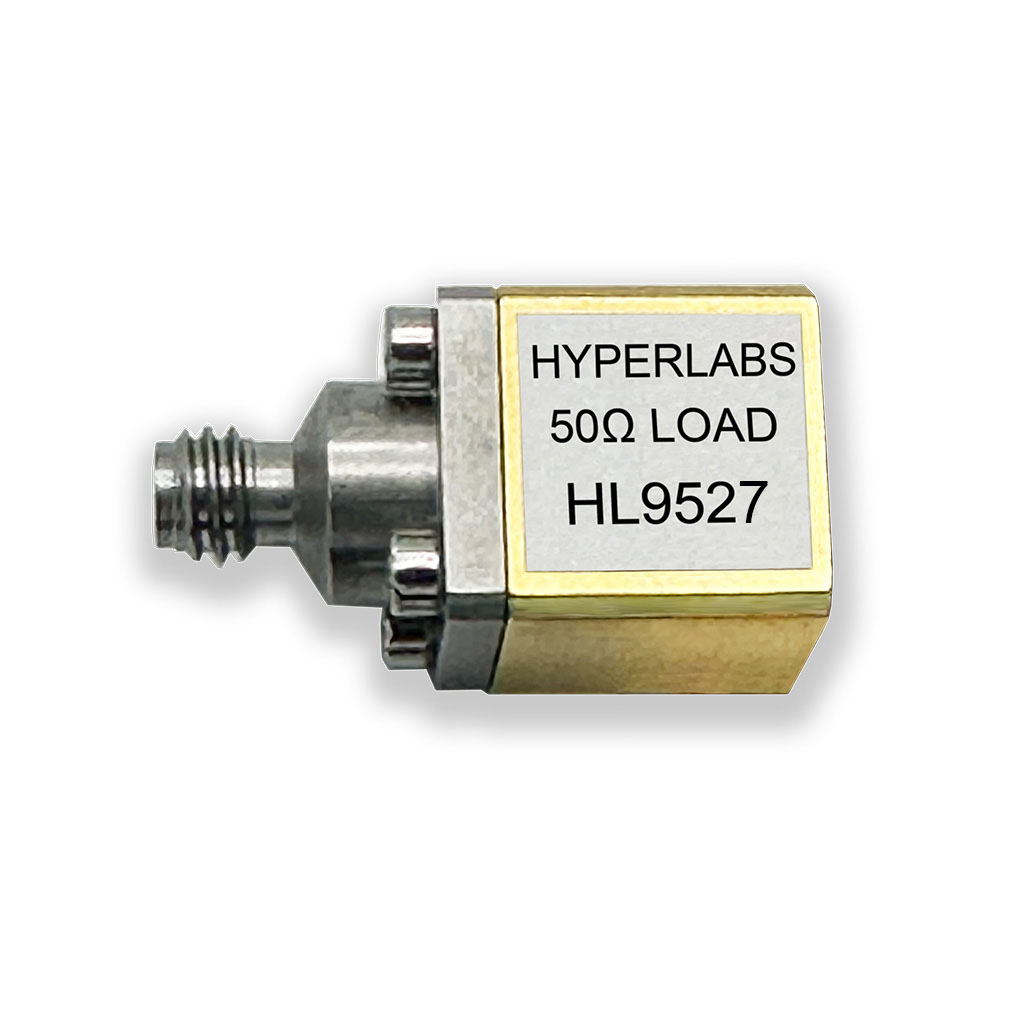

HL9527
HL9527 Broadband Termnation
HL952x_block
HL952x Block Diagram
HL9529_IL small
HL9529 Return Loss
HL9527 Broadband Termination (DC to 70 GHz)
$895.00
Datasheet | S-parameters
The HL9527 is an ultra-broadband 50 Ω load termination.
These devices are typically used to provide a matched (dummy) load on an unused port to prevent unwanted reflections.
Typical applications include 5G Wireless, test & measurement, radar systems, and Mil/Aero.
Key Specifications (typical)
| Bandwidth | DC to 70 GHz |
|---|---|
| Return Loss (AC) | 20 dB, DC < f ≤ 70 GHz |
| Connectors | 1.85 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
