HL9538 Broadband DC Blocking Adapter (1.0 mm to 1.85 mm)
HL9538_web

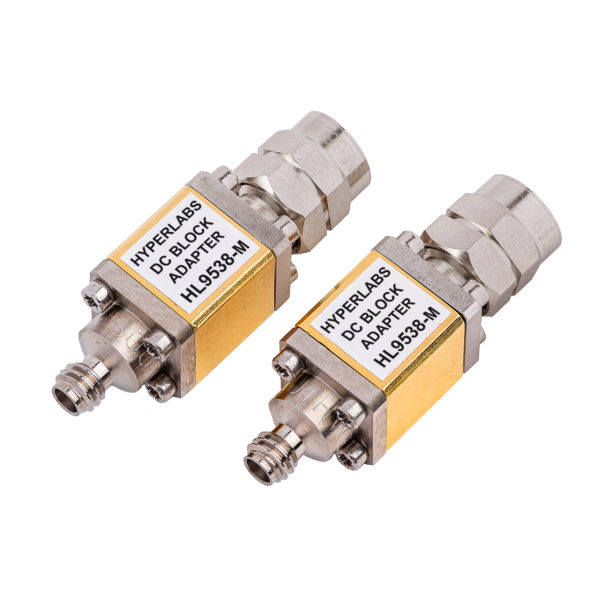

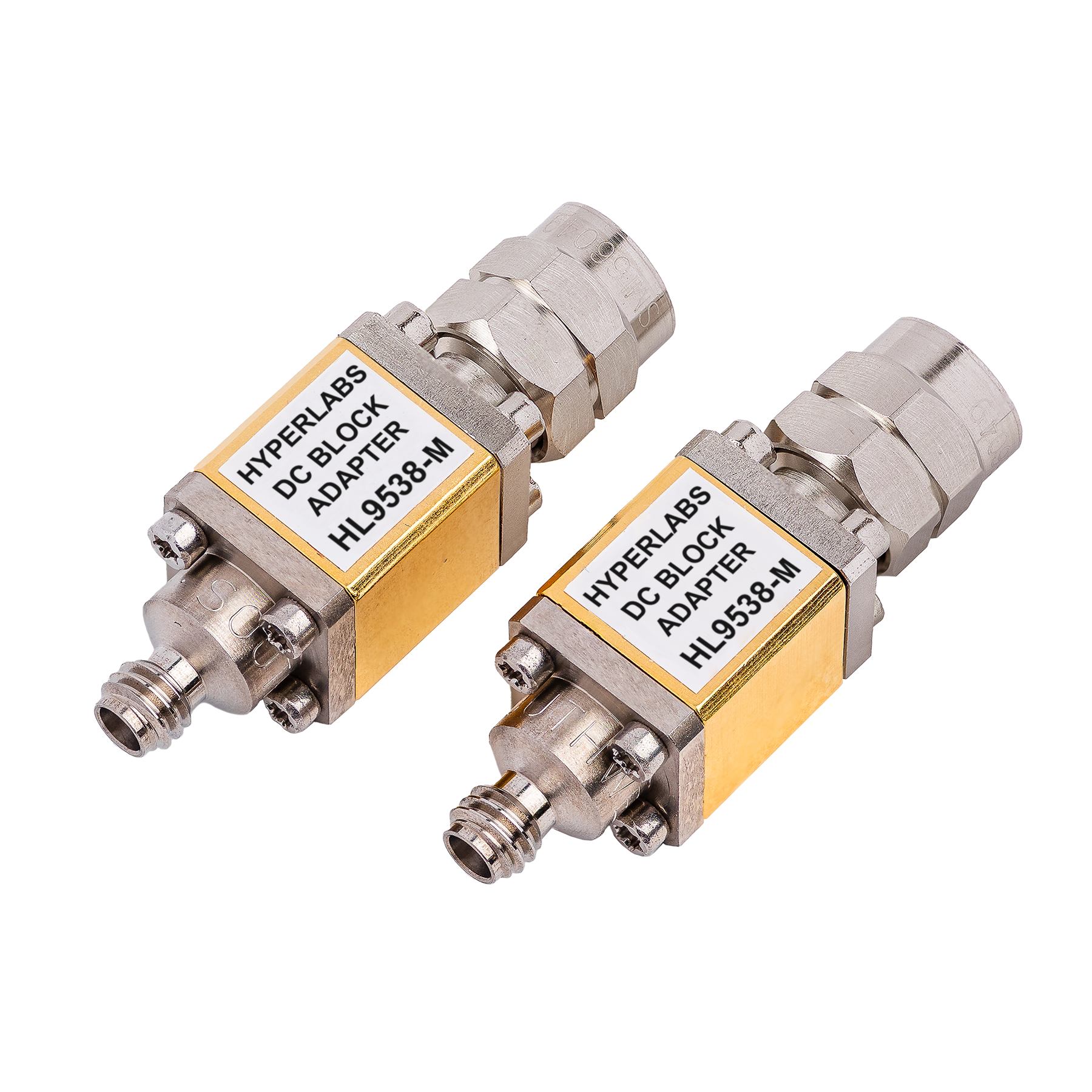

HL9538 DC Blocking Adapter with standard -JP configuration

HL9538 Broadband DC Blocking Adapter (1.0 mm to 1.85 mm)

$2,595.00 – $5,690.00

Datasheet PDF | S-parameters (available soon)

The HL9538 is an ultra-broadband DC blocking adapter between series (1.0 mm to 1.85 mm) with a typical insertion loss of < 2 dB throughout the specified bandwidth range.

Incorporating both the DC block and the series adapter into a single device removes interfaces which improves overall system performance.

The DC block will remove DC bias from the input signal to prevent damage to DC-sensitive devices or equipment.

These devices are suitable for use in 224 Gbps PAM4 communications systems, optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.

They can also be used to improve RF power measurements when a power meter with DC sensitivities is used.

Key Specifications (typical)
Bandwidth* 160 kHz to 95 GHz (opt. -11)
200 kHz to 95 GHz (opt. -30)
Amplitude Match ± 0.1 dB, f ≤ 95 GHz (opt. -M)
Phase Match ± 4 degrees, f = 40 GHz (opt. -M)
Insertion Loss < 2 dB, nominal, f ≤ 95 GHz
Connectors 1.0 mm Port 1, 1.85mm Port 2
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

*NOTE: 1.85 mm connectors can produce unwanted moding above 67 GHz. All parts are screened to minimize or eliminate this undesired response.
