HL9547

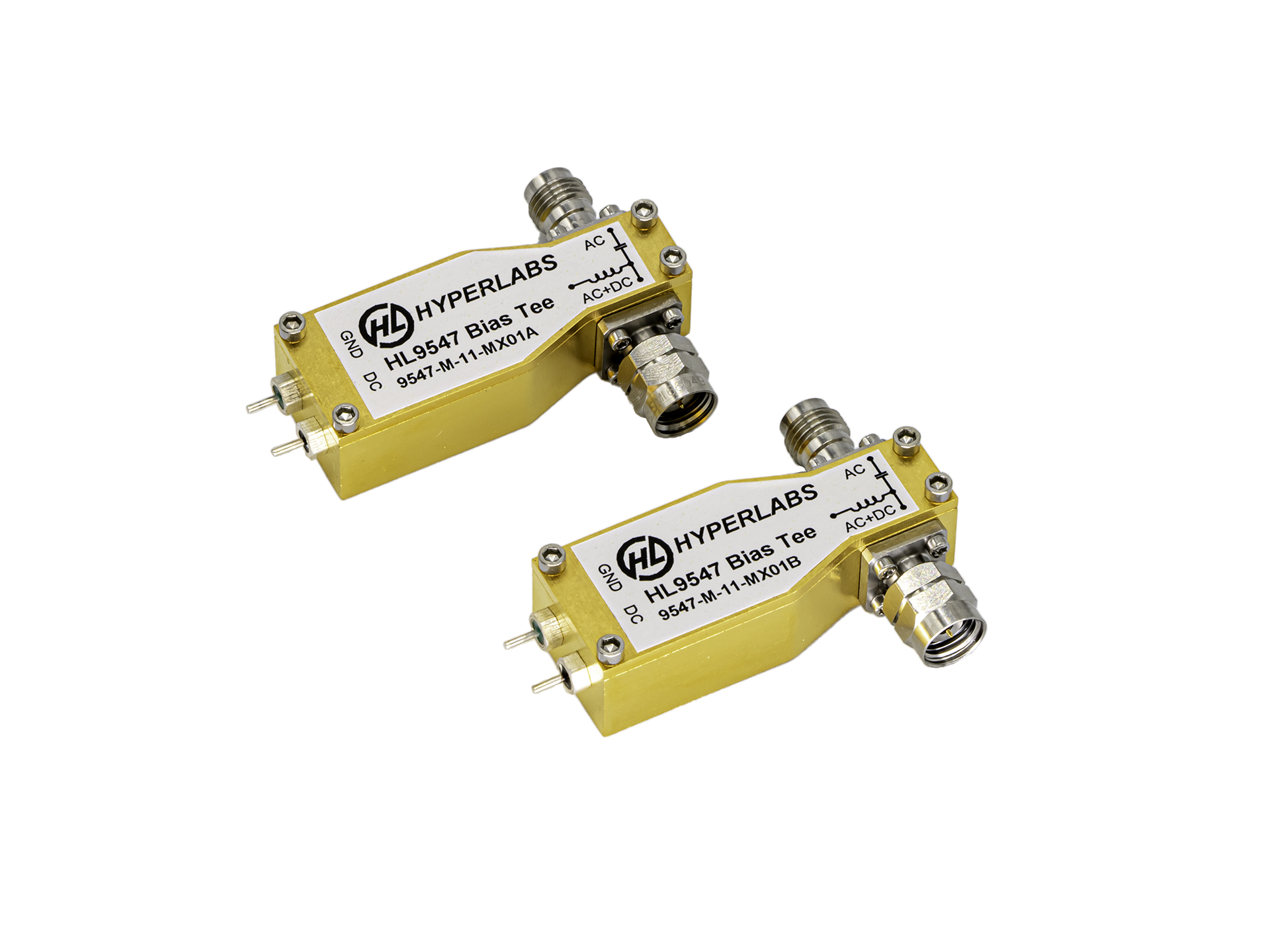

HL9547 Broadband Bias Tee (67 GHz, 400 mA), opt. -M-JPC shown
HL9547-SMA

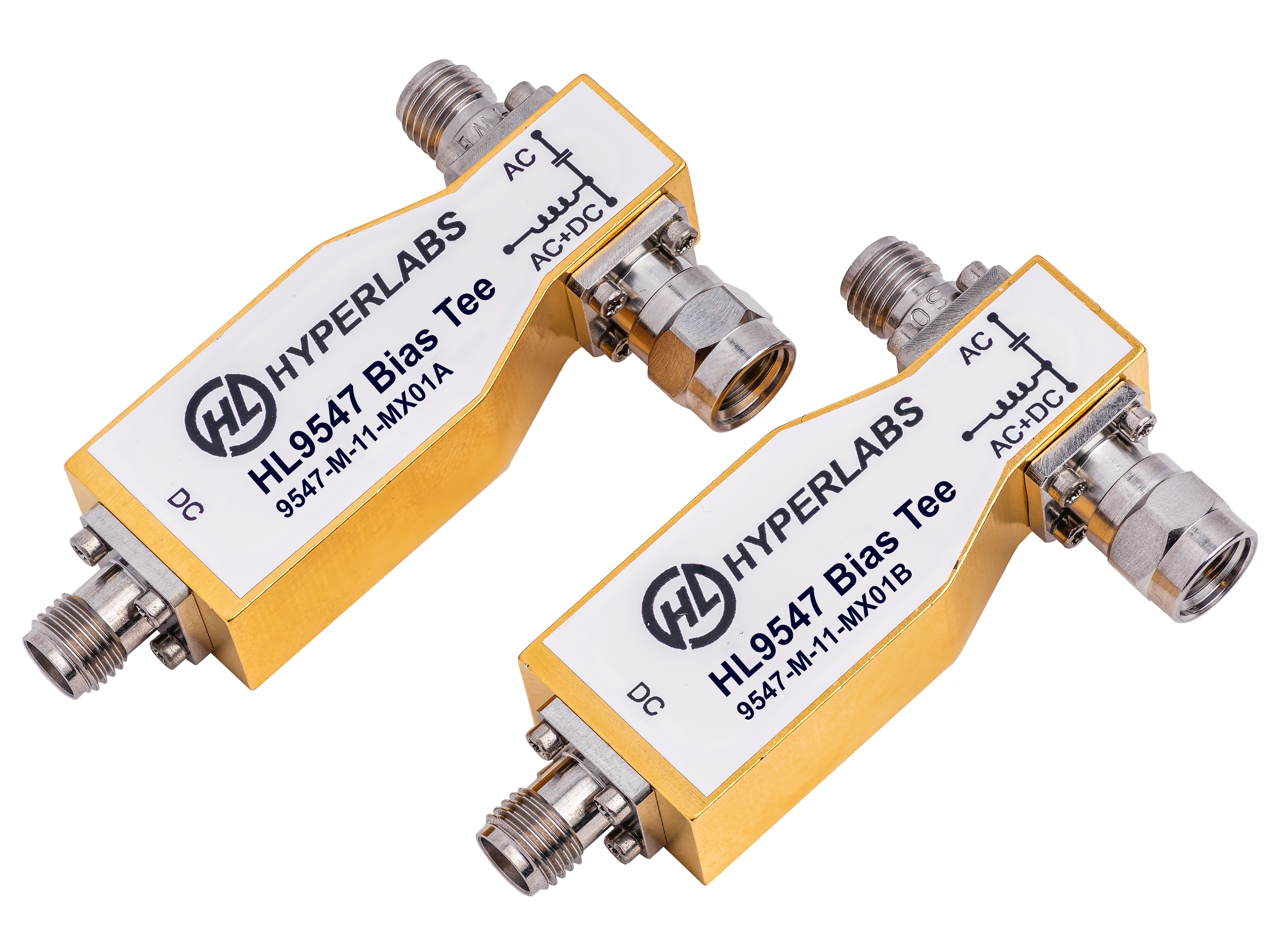

HL9547 Broadband Bias Tee (67 GHz, 400 mA), opt. -M-JPS shown
HL954x_block
HL954x Series block diagram
HL9547_Sparam
Typical HL954x Series insertion and return loss (model HL9547 shown)
HL9547 Bias Tee (50 kHz to 67 GHz, 400 mA)
$1,295.00 – $2,595.00
Datasheet PDF | S-parameters
This product is now available with an SMA jack connector on the DC port.
The HL9547 is an ultra-broadband bias tee with a maximum insertion loss of 1.8 dB from 50 kHz to 67 GHz.
These devices block any existing DC signal and allows for the insertion of a DC bias current into a circuit with minimal perturbation of the impedance of a 50 ohm transmission line.
These devices can be used for biasing amplifiers, lasers, optical modulators, and other devices.
Applications include 112 Gbps PAM4 communications systems, optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
This part is available as matched pairs or individual units with breakdown voltage of 11 V or 30 V and a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 50 kHz to 67 GHz (opt. -11) 75 kHz to 67 GHz (opt. -30) |
|---|---|
| Amplitude Match | ± 0.1 dB, f ≤ 67 GHz (opt. -M) |
| Phase Match | ± 4 degrees, f = 40 GHz (opt. -M) |
| Insertion Loss | < 1.8 dB, nominal, f ≤ 67 GHz |
| Return Loss | > 15 dB, f ≤ 35 GHz > 10 dB, 35 GHz < f ≤ 67 GHz |
| Max Current | 400 mA |
| Connectors | 1.85 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
