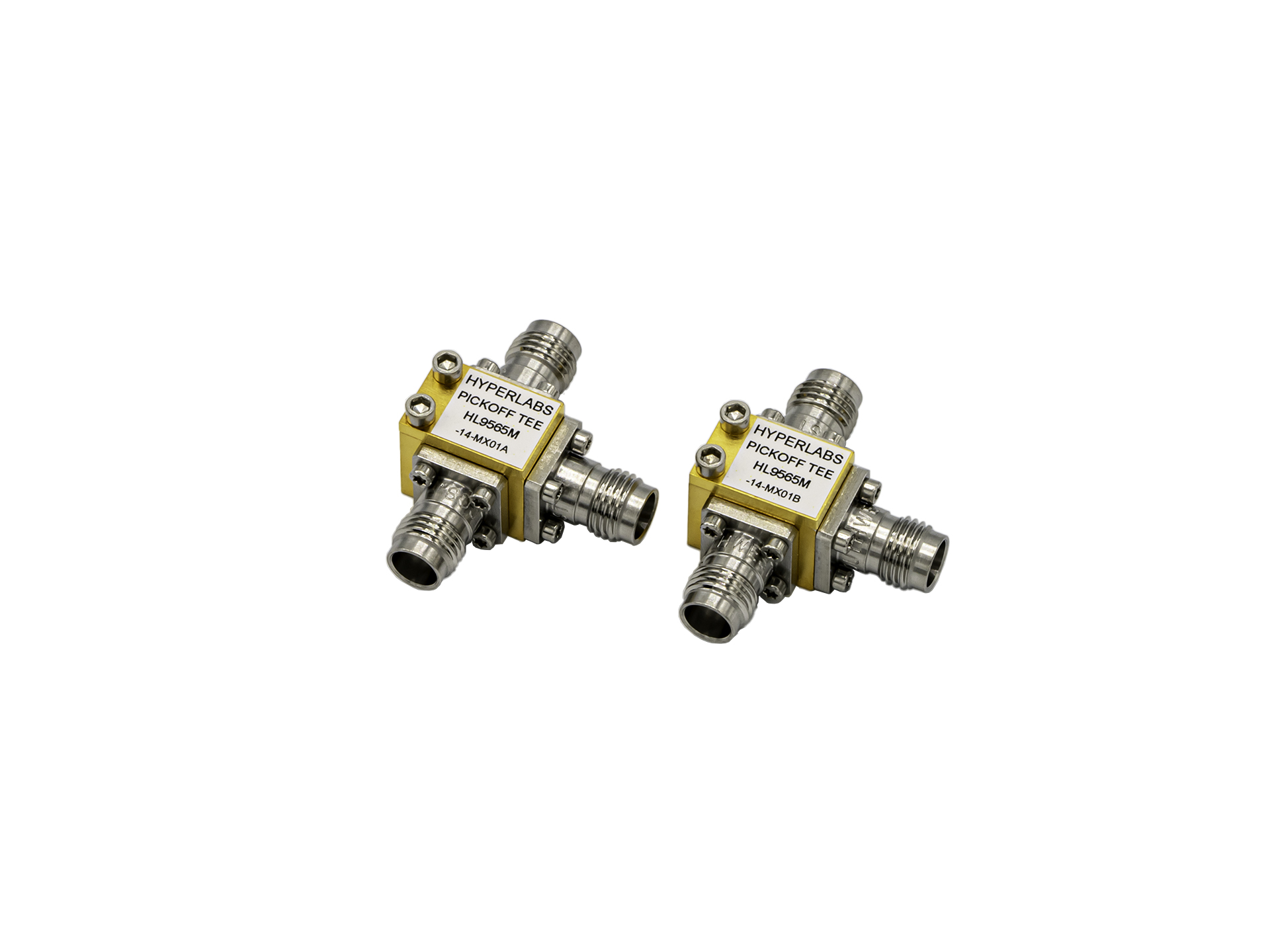

HL9565, opt. -M-JJJ shown
HL9565 Broadband Pick-off Tee (DC to 50 GHz)
$1,395.00 – $2,795.00
Datasheet PDF | S-parameters ZIP
The HL9565 Broadband Pick-off Tee, available as either matched pairs (opt. -M) or individual devices (opt. -U), offers flat frequency response from DC to 50 GHz on the thru pick-off lines. It is suitable as a trigger source with minimum perturbation of the through signal path. Digital oscilloscope applications include pre-scaler triggering, synchronization, and clock/data recovery.
This product is part of our line of Broadband DC Pick-off Tees.
| Bandwidth | DC to 50 GHz, thru and pick-off |
|---|---|
| Amplitude Match | ± 0.10 dB, typical |
| Risetime | 7 ps, thru and pick-off |
| Insertion Loss | 0.9 dB thru, 14.5 dB pick-off (opt. -14) 0.45 dB thru, 20.5 dB pick-off (opt. -20) |
| Connectors | 2.4 mm, various configurations |
| ROHS compliance | Yes, assembled with lead-free solder |
| Warranty | 1 year, repair or replacement |
