HL9575 Broadband Resistive 4-Way Power Divider (DC to 50 GHz)
HL9575_web

HL9575 Broadband Resistive 4-Way Power Divider (DC to 50 GHz)

HL9575 Broadband Resistive 4-Way Power Divider (DC to 50 GHz) - Image 2
HL957x_block

HL957x Series block diagram

HL9575 Broadband Resistive 4-Way Power Divider (DC to 50 GHz) - Image 3
HL9577_Sparam

Typical HL957x Series insertion loss (model HL9577 shown)

HL9575 Broadband Resistive 4-Way Power Divider (DC to 50 GHz)

$2,595.00

Datasheet  | S-parameters

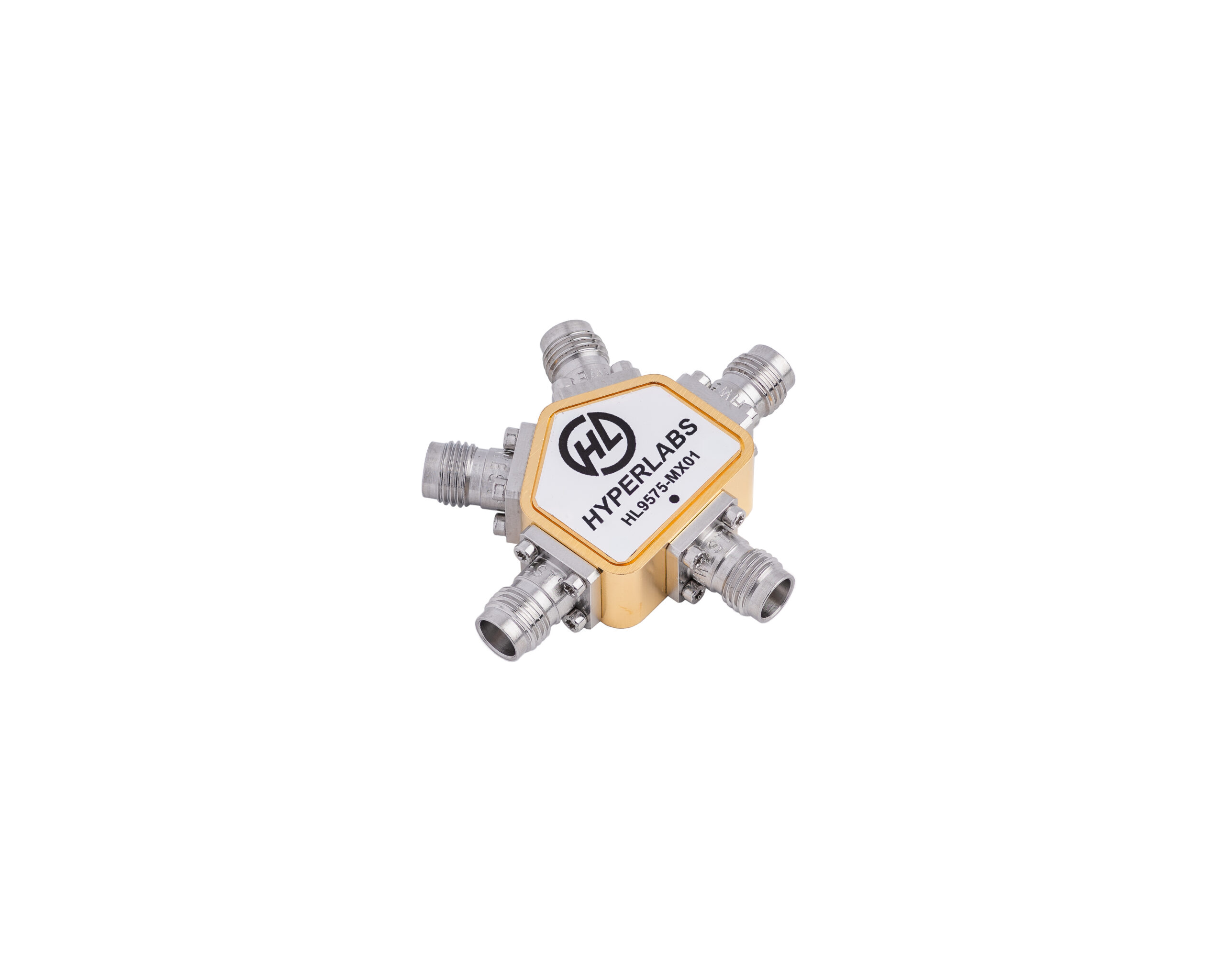

The HL9575 is a 12 dB, 4-way power divider that provides outstanding amplitude and phase symmetrical power division from DC to 50 GHz.

This ROHS-compliant product is designed using multiple three-resistor networks resulting in outputs that are nominally attenuated to 12 dB, and all ports are impedance-matched to 50 Ohms when the ports are terminated.

They are suitable for use in 112 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.

For other high-performance power divider products, please see our complete line of ultra-broadband power dividers.

Key Specifications (typical)
Bandwidth (1.5 dB) DC to 50 GHz
Amplitude Match ± 0.5 dB
Phase Match ± 4 degrees, f = 20 GHz
± 8 degrees, f = 40 GHz
Insertion Loss (AC) 12 dB
Connectors 2.4 mm; 5x jack
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

NOTE #1: Port 1 is marked with a dot on the label. Ports 2, 3, 4, and 5 are amplitude- and phase-matched.
