HL9607 Broadband Balun (150 kHz to 67 GHz)
HL9607 Broadband Isolation Balun (150 kHz to 67 GHz)
$5,995.00
Datasheet | S-parameters

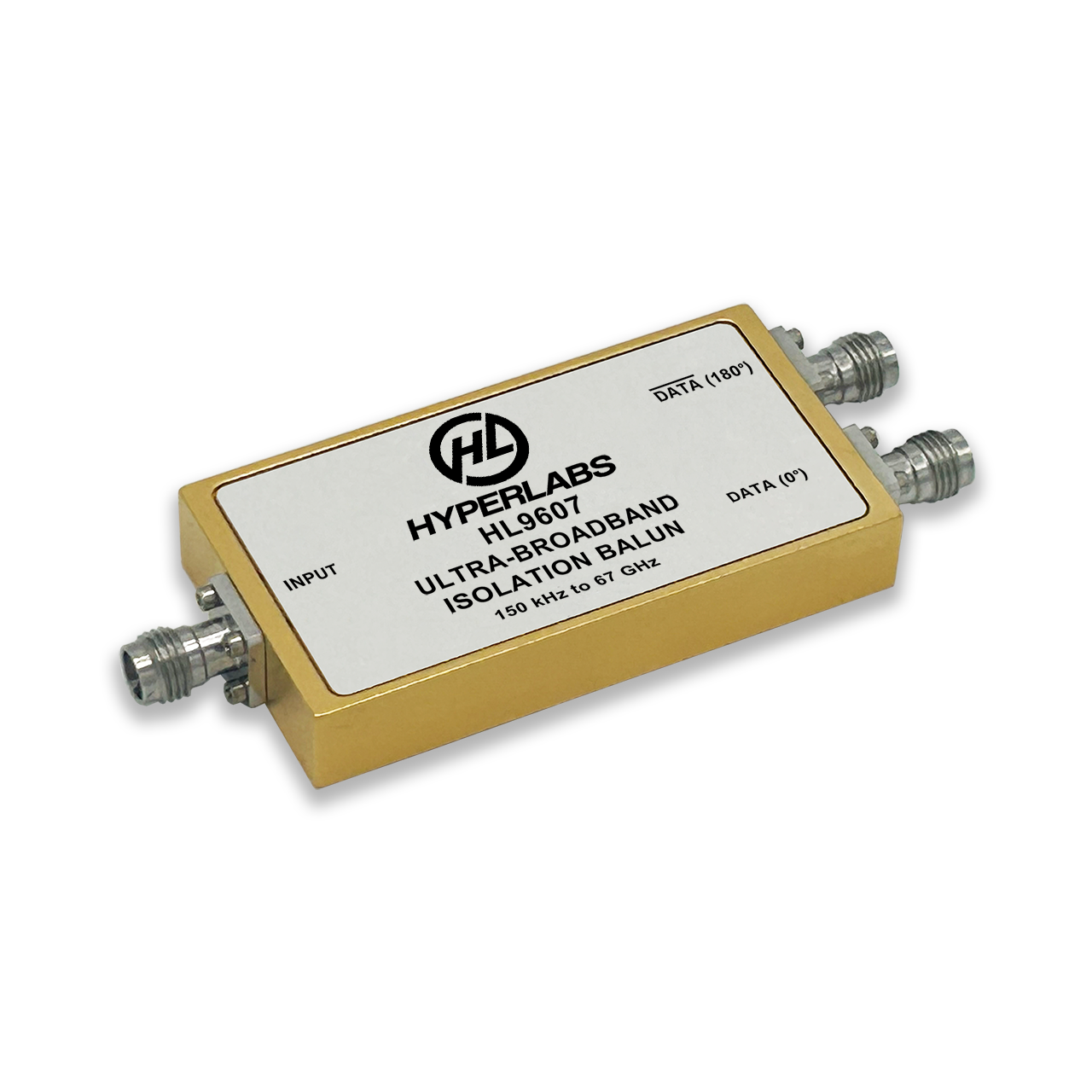

The HL9607 is a miniaturized broadband balun featuring high isolation and designed for optimal phase and amplitude balance over a 3 dB bandwidth of 150 kHz to 67 GHz.
They are an excellent choice for use in highspeed analog- to-digital conversion, balanced receivers, baseband digital modulations, and signal integrity enhancement.
For other high-performance balun products, please see our complete line of ultra-broadband baluns.
Key Specifications (typical)
| Bandwidth | 150 kHz to 67 GHz |
|---|---|
| Amplitude Match | ± 1 dB |
| Phase Match | ± 12 degrees |
| Isolation | 17 dB |
| Insertion Loss | 3 dB as a mode converter |
| Connectors | 1.85 mm; 1x jack input, 2x jack output |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
NOTE #1: If the DC voltage of the balanced or unbalanced ports is non-zero, DC blocks are required. The balanced ports (2 and 3) are DC shorted.
