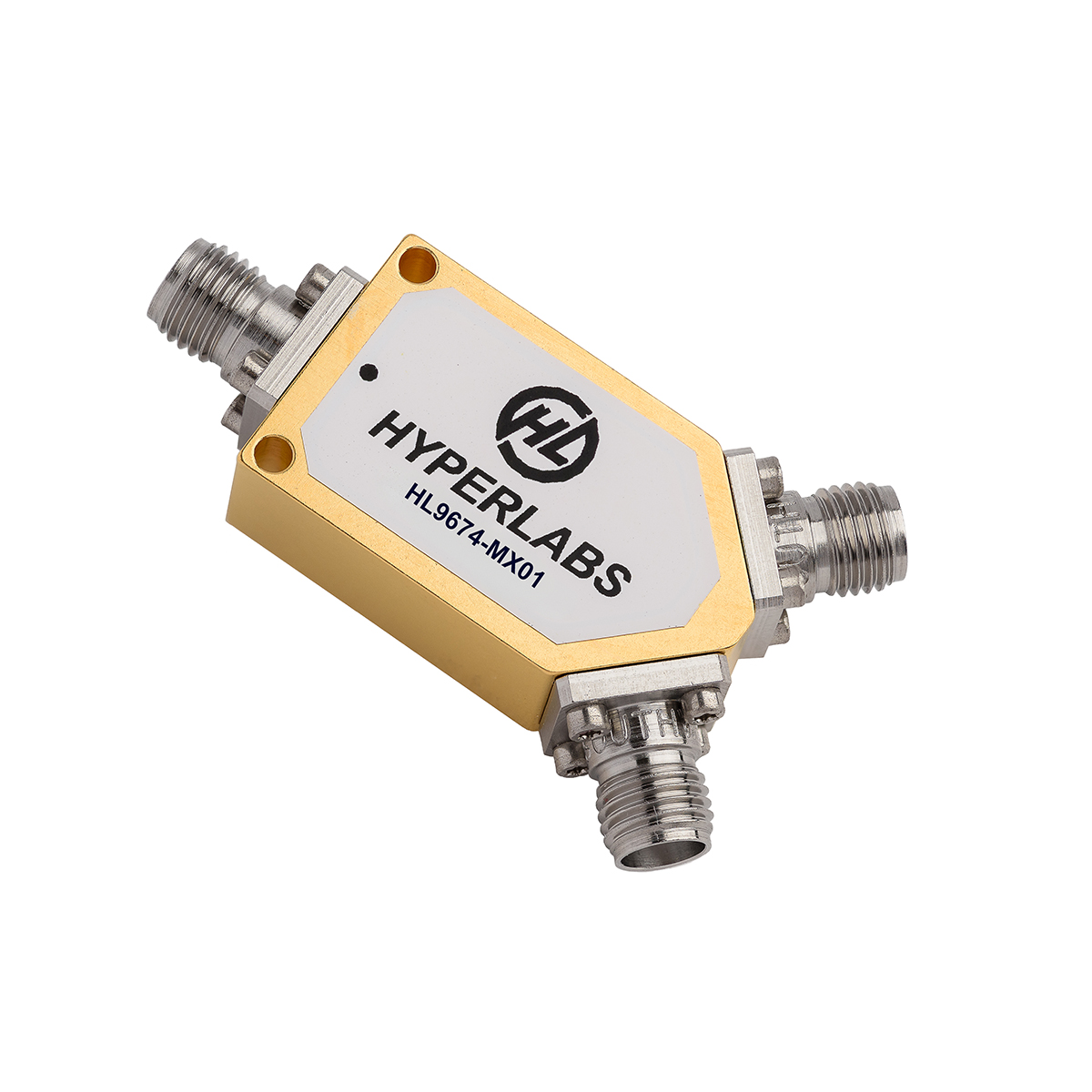

HL9677 Wilkinson Power Divider (similar model shown)
HL9677 Broadband Wilkinson Power Divider (1 GHz to 67 GHz)
$2,995.00
Datasheet | S-parameters
The HL9677 is a 2-way Wilkinson power divider that provides outstanding amplitude and in-phase power division or combining from 1 GHz to beyond 67 GHz.
This ROHS-compliant product is designed using concatenated quarter-wavelength transformers resulting in low loss outputs that are ideally attenuated to 3 dB, when all ports are impedance-matched to 50 Ohms.
The advantage of a Wilkinson power divider is the high isolation between the output ports that is extremely advantageous in power combining applications.
Applications include test and measurement, high-speed data communications, and power combining.
For other high-performance power divider products, please see our complete line of ultra-broadband power dividers.
Key Specifications (typical)
| Bandwidth (3 dB) | 1 GHz to 67 GHz |
|---|---|
| Amplitude Match | ± 0.5 dB |
| Phase Match | ± 1°, f ≤ 50 GHz ± 2°, f > 50 GHz |
| Insertion Loss (AC) | 4 dB |
| Connectors | 1.85 mm; 3x jack |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
NOTE #1: Port 1 is marked with a dot on the label. Ports 2 and 3 are amplitude- and phase-matched.
