Technical Specifications
Datasheet PDF
| Measurement Type | Differential odd mode |
|---|---|
| Rise Time | 50 ps (20-80%), typical |
| Footprint | 0.100″, square, ground/signal/ground/signal |
| Warranty | 1 year, repair or replacement |
The Hyperlabs online store is closed for the holidays, and we will return on January 2, 2025.
HL9722

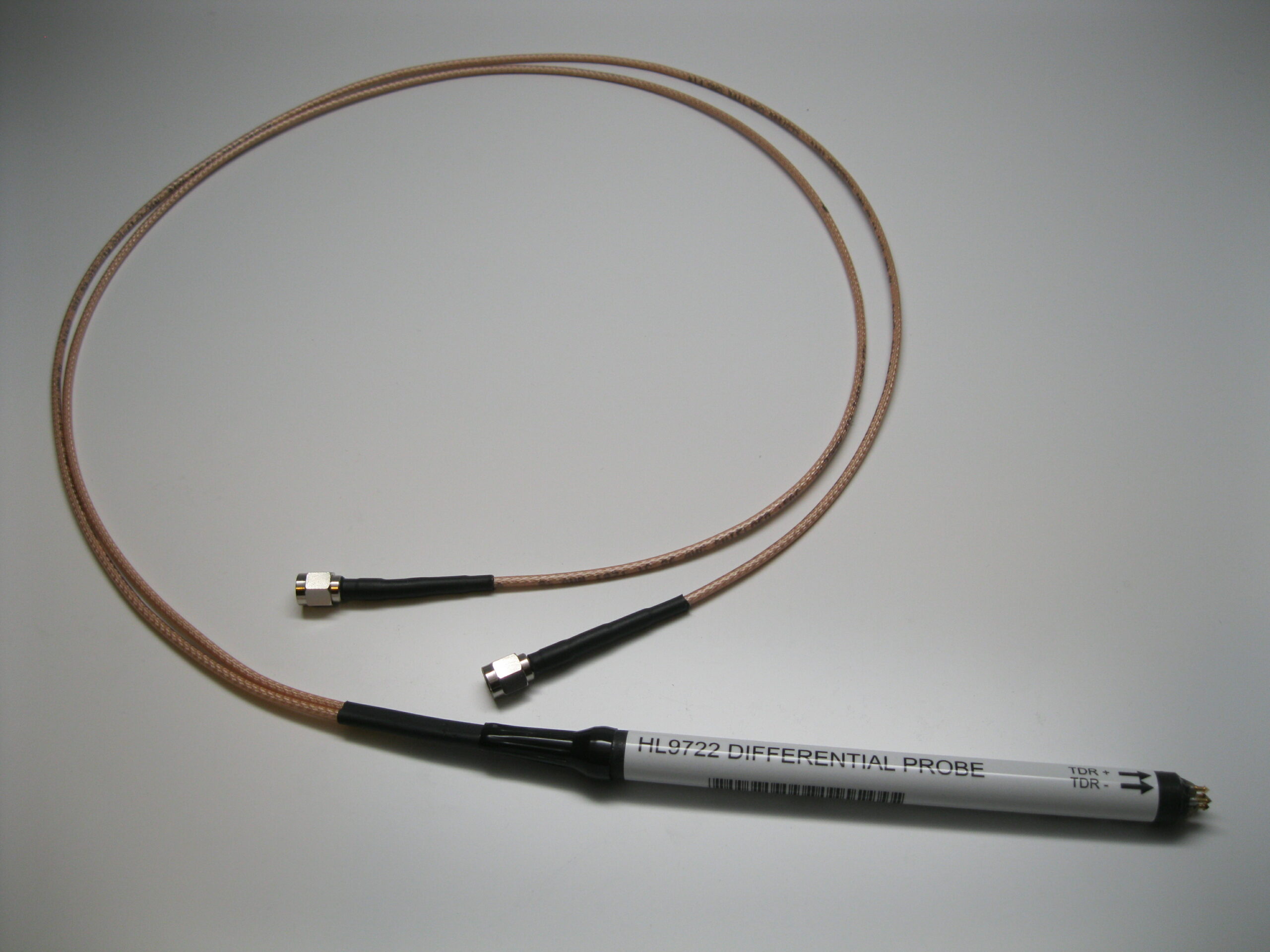

HL9722 Differential Odd Mode Pencil Probe
$795.00
AS OF SEP 1, 2022, THIS PRODUCT IS ONLY AVILABLE AS PART OF THE HL300S SYSTEM BUNDLE.
Datasheet PDF
The HL9722 is a handheld pencil-style probe used to simply impedance characterization of IPC-2141A standard (0.100”) PCB test coupons.
This differential odd mode probe is designed specifically for use with the HL3204 Controlled Impedance Analyzer.
The HL9722 can be purchased alone or as part of our dedicated HL300S Ruggedized Controlled Impedance Test System.
Product Applications
- Printed circuit board (PCB) coupon testing
- Characterizing impedance in traces as short as 4″
