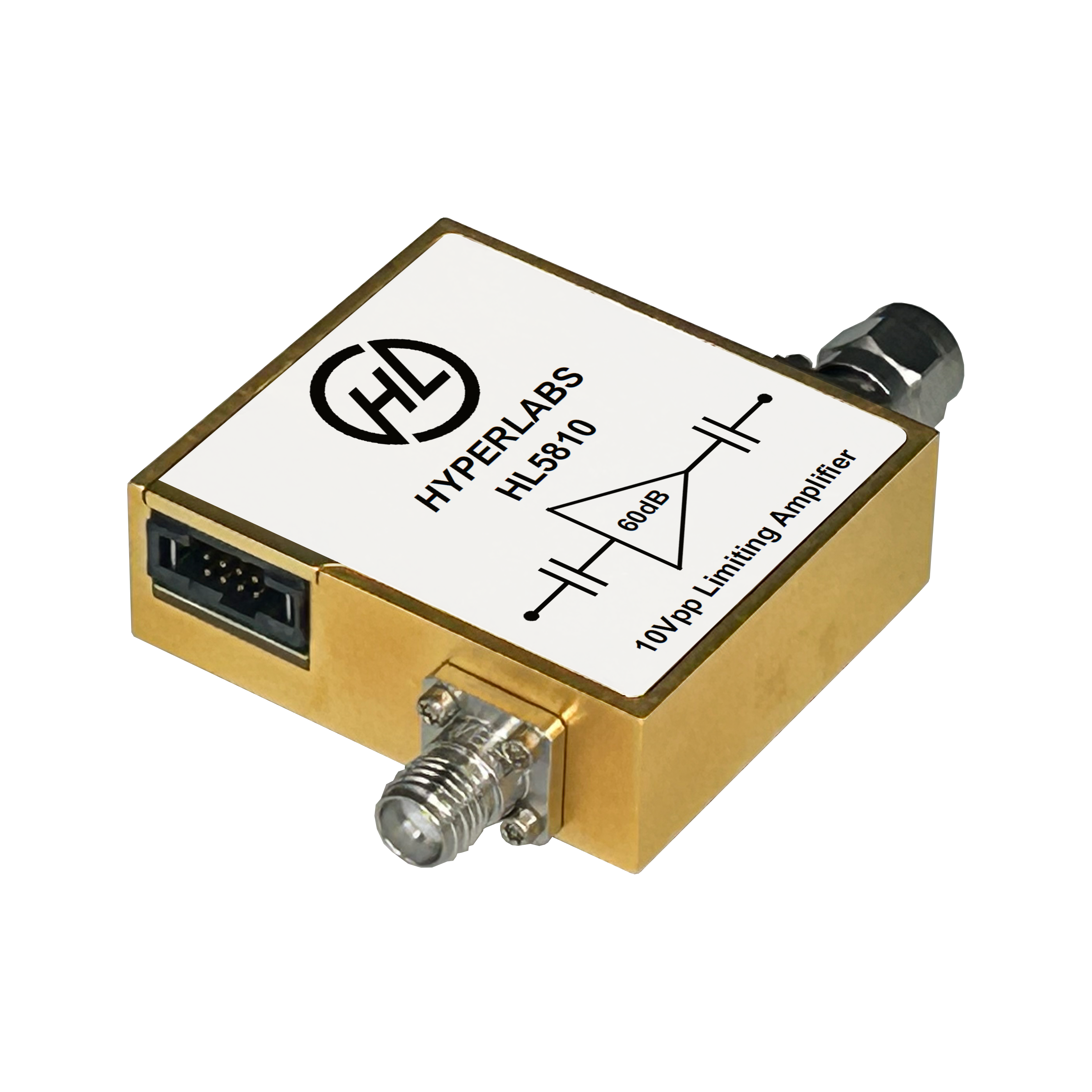

HL5810 10Vpp Limiting Amplifier
HL5810 10 Vpp Limiting Amplifier (100 kHz to 15 GHz)
$5,995.00 – $6,195.00
Datasheet | STEP File
The HL5810 is an ultra-broadband, thermally-compensated limiting amplifier designed for broadband pulse amplification and NRZ data transmission up to 20Gbps.
In limiting mode, the HL5810 produces a fixed 10 Vpp output amplitude in response to a wide range of input signals from 0.03 Vpp to 0.63 Vpp.
The exceptional gain compression characteristics of the HL5810 serve to accelerate slow signal transitions and flatten topline aberrations, improving the signal integrity of binary data.
This product is part of our line of Broadband Amplifiers.
Key Specifications (typical)
| Maximum Data Rate | 20 Gbps |
|---|---|
| Small Signal Gain | 60 dB |
| Limiting Output Amplitude | 10 Vpp |
| Saturated Output Power | 27 dBm |
| Return Loss | 20 dB, f < 10 GHz, input 20 dB, f < 7 GHz, output |
| Connectors | SMA jack input, SMA plug output Other configurations available at additional cost |
| Temperature Limits | 0° to +70° C, case temperature |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
Related products
-

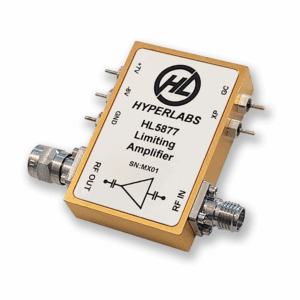

HL5877 Broadband Limiting Amplifier (35 kHz to 24 GHz)
$3,295.00 Select options This product has multiple variants. The options may be chosen on the product page -
HL5897 Ultra-Broadband Linear Amplifier (48 kHz to 63 GHz)
$4,795.00 – $5,795.00 Select options This product has multiple variants. The options may be chosen on the product page -

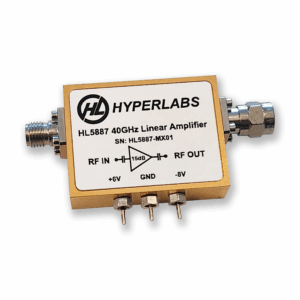

HL5887 Broadband Linear Amplifier (42 kHz to 40 GHz)
$3,495.00 Select options This product has multiple variants. The options may be chosen on the product page -

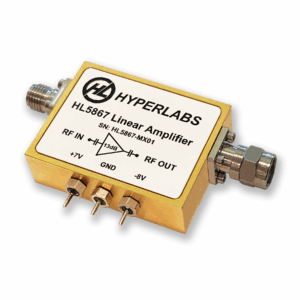

HL5867 Broadband Linear Amplifier (35 kHz to 30 GHz)
